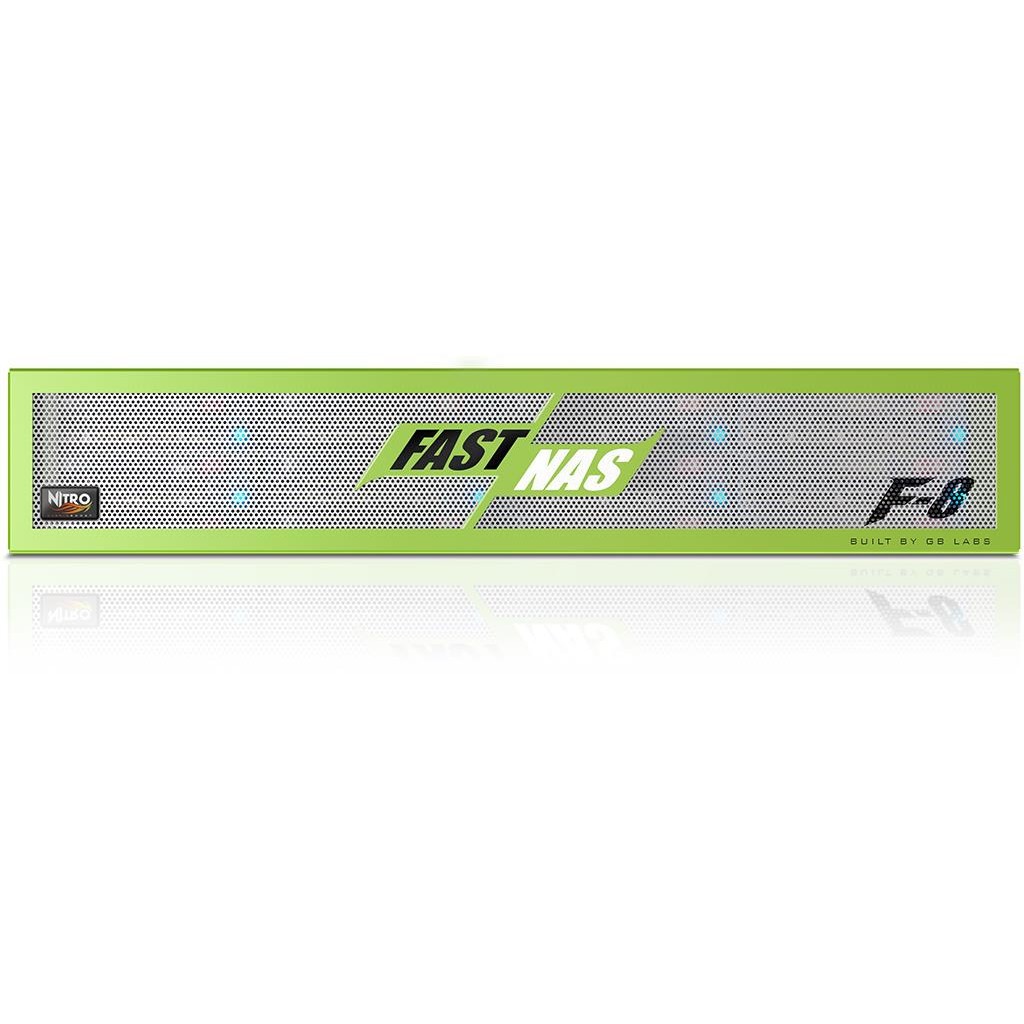

GB Labs FastNAS F8 NITRO

Rack Based Media Production
Clear
Brand:GB Labs

Overview

Rack based delivering SSD performance with HDD capacities powered by GB Labs’ Nitro hybrid disk technology and CORE.4 Lite OS tools such as Velocity RAID Engine (V.R.E.) and Mosaic.

Ideal for small – medium Post-Production houses and collaborative media workflows.

Technologies: Nitro / IDA / VRE / Mosaic
Capacity: 16 – 96TB
HDD Speed: Up to 1GB/s
Nitro Boost: 512GB at 500MB

CONFIGURABLE CAPACITIES

FastNAS F-8 Nitro 16TB, 32TB, 48TB, 64TB, 80TB and 96TB

CONNECTIVITY

On Motherboard

  • 2 x USB 3.0 and 2 x USB 2.0 ports 1 x VGA connector
  • 1 x COM post

Other

  • 4 x 1Gb Ethernet ports (RJ45)
  • 1 x RJ45 dedicated IPMI LAN port

Option for additional 1Gb, 10Gb, 25Gb and 40Gb Ethernet ports

UNIT SPECIFICATIONS

Bootable replacement OS is provided on Rescue Capsule USB drive for fast system recovery.

Unit dimensions: 8.9cm x 47.3cm x 65.0cm (3.5” x 18.6” x 25.5”)Unit weight: 28kg (31.7lbs)Input range: 100 – 240 VAC, 50-60HzPSU safety: EMC – USA-UL listed. Canada-CUL listed, Germany-TUV certified, EN60950/IEC 60950-Compliant,CB report, CCC certificationPower supply: Single redundant 500W removable PSUsOption for dual redundant 500W removable PSUsPower requirements standby: 33WPower requirements full load: 350WOperating temperature range: 10°C – 35°CNon-operating range: -40°C – 70°COperating humidity range: 8 – 90% non-condensing Non-operating humidity range: 5 – 95% non-condensingUnit form factor: 2U rackmount (rack mounts included)

Key Features

  • CORE.4 Lite OS
  • IDA
  • Nitro Hybrid Boost
  • RAID 5 Data Protection Velocity RAID Engine (VRE) OS Agnostic
  • Network Loop Protection Replication
  • Active Directory
  • Mosaic
  • File Manager
Connectivity

Max. Speeds

Power

Dimensions

Connection

Brand

GB Labs

GB Lab's range of SPACE & FastNAS products represent 15 years of storage innovation in the media industry. All of their solutions have been developed to solve ‘real world’ needs - designed with customers, for customers.
