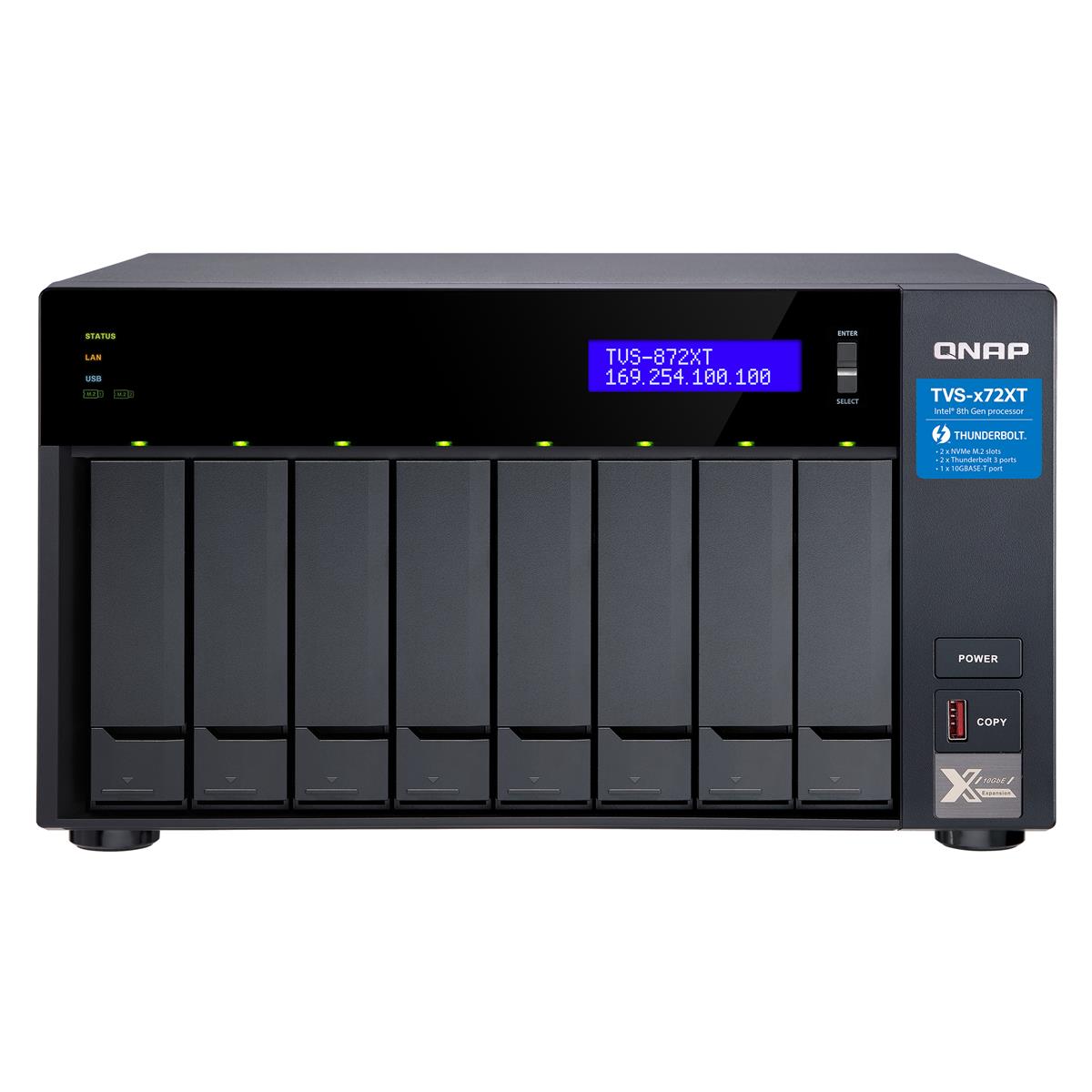

QNAP TVS-872XT 8 Bay Desktop NAS

Powerful 10GbE and Thunderbolt 3 NAS for Efficient 4K Media Collaboration
Available To Order
Please contact us to discuss this product.
  • Internal Product Code:
    CCK2757
  • Manufacturer Product Code:
    TVS-872XT-i5-16G
  • EAN:
    4713213518885
Brands:QNAP

Overview

Server-grade Intel® Xeon® E processor and ECC memory for high performance and reliability

The Intel® Xeon® E based TS-2483XU-RP enterprise NAS with up to 64 GB DDR4 ECC (Error Correcting Code) memory delivers server-grade performance with dependable reliability. It features 10GbE SmartNIC controllers that not only fulfil bandwidth-demanding applications but also support iSER to offload CPU workloads with boosted virtualization performance, while PCIe expansion allows for installing graphics cards to empower video surveillance, virtualization and AI applications. The performance-driven TS-2483XU-RP provides you with advanced business-ready features, including software-defined SSD extra over-provisioning, software-defined networking & virtual switch, and much more.

Key Features

  • High-speed Thunderbolt™ 3 with SMB protocol, allowing Mac® and Windows® users to collaborate on media editing
  • 5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices
  • PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance
  • Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency
  • 4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output
  • Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks

What’s In The Box

  • TVS-872XT
  • Gigabit Ethernet Cable x 2
  • 10Gbase-T Ethernet cable x 1
  • Flat head screw (for 2.5" HDD)
  • Flat head screw (for 3.5" HDD)
  • M.2 SSD Heatsink x 2
  • Power cord x 1
  • Quick Installation Guide (QIG)


CPU

Intel® Core™ i5-8400T 6-core 1.7 GHz Processor Max turbo to 3.3 GHz

Hot-swappable

Yes

Graphic Processors

Intel® UHD Graphics 630

System Memory

16 GB SODIMM DDR4 (2 x 8 GB)

Memory Slot

2 x SO-DIMM DDR4

Flash Memory

5GB (Dual boot OS protection)

Drive Bay

8 x 3.5-inch SATA 6Gb/s 3Gb/s

Drive Compatibility

3.5-inch bays:, 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives

CPU Architecture

64-bit x86

Gigabit Ethernet Port (RJ45)

x 2

M.2 SSD Slot

2 x M.2 2280 PCIe Gen3 x2 slots

10 Gigabit Ethernet Port

1 x 10GBASE-T (10G/5G/2.5G/1G/100M)

Thunderbolt Port

2 (Thunderbolt™ 3)

PCIe Slot

Slot 1: PCIe Gen 3 x16 (CPU), Slot 2: PCIe Gen 3 x4 (PCH)

USB 3.2 Gen 1 port

x 1

USB 3.2 Gen 2 (10Gbps) Port

2 x Type-C USB 3.2 Gen 2 10Gbps, 2 x Type-A USB 3.2 Gen 2 10Gbps

IR Sensor

(QNAP RM-IR004 & MCE)

HDMI Output

HDMI 2.0 (up to 3840 x 2160 @ 60Hz)

Brand

QNAP

QNAP, named from Quality Network Appliance Provider, is devoted to providing comprehensive solutions from software development, hardware design to in-house manufacturing. Focusing on storage, networking and smart video innovations, we strive to build a technology ecosystem upon subscription-based software and diversified service channels. QNAP envisions NAS as being more than a simple storage and has created a cloud-based networking infrastructure for users to host and develop artificial intelligence analysis, edge computing and data integration on their QNAP solutions.
