Overview

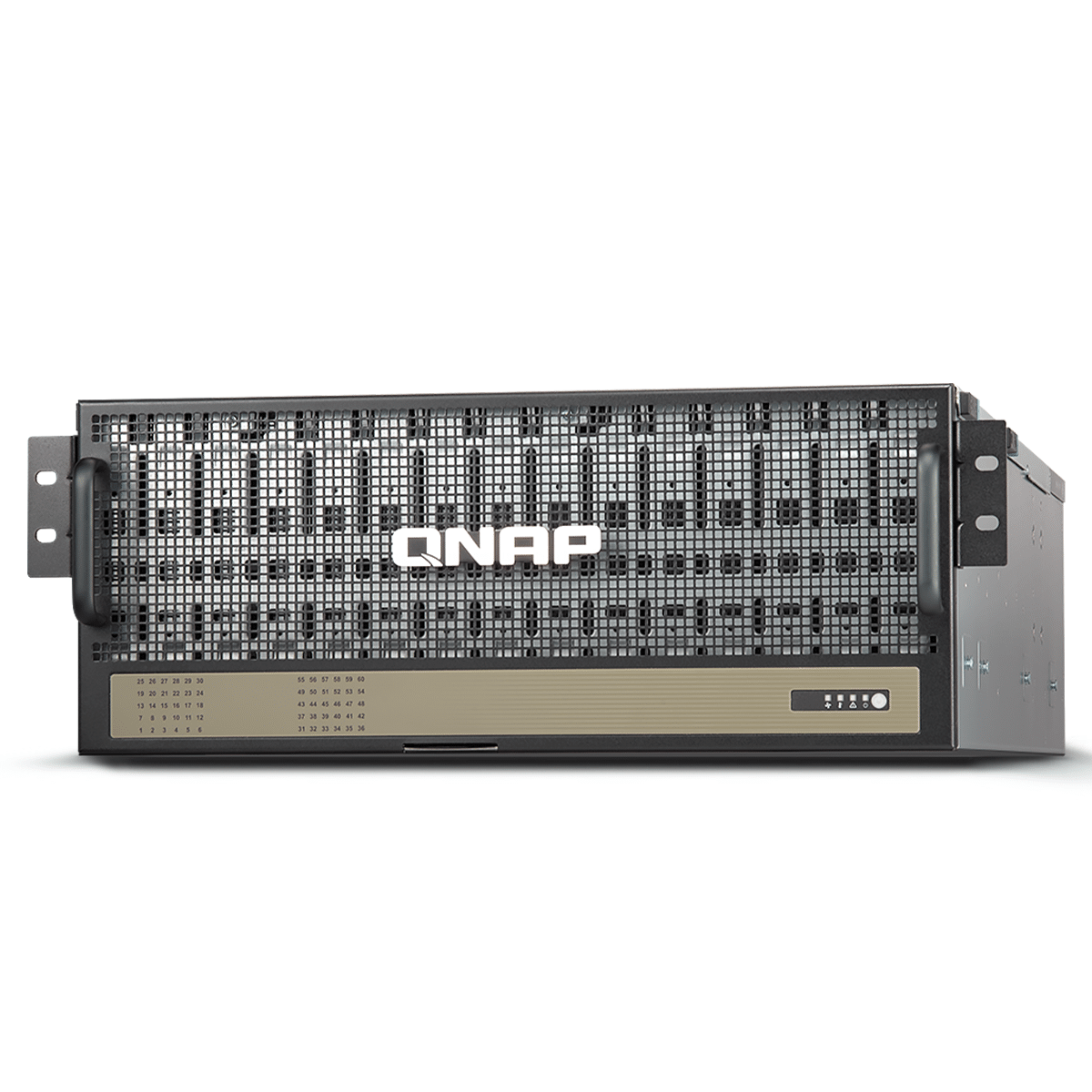

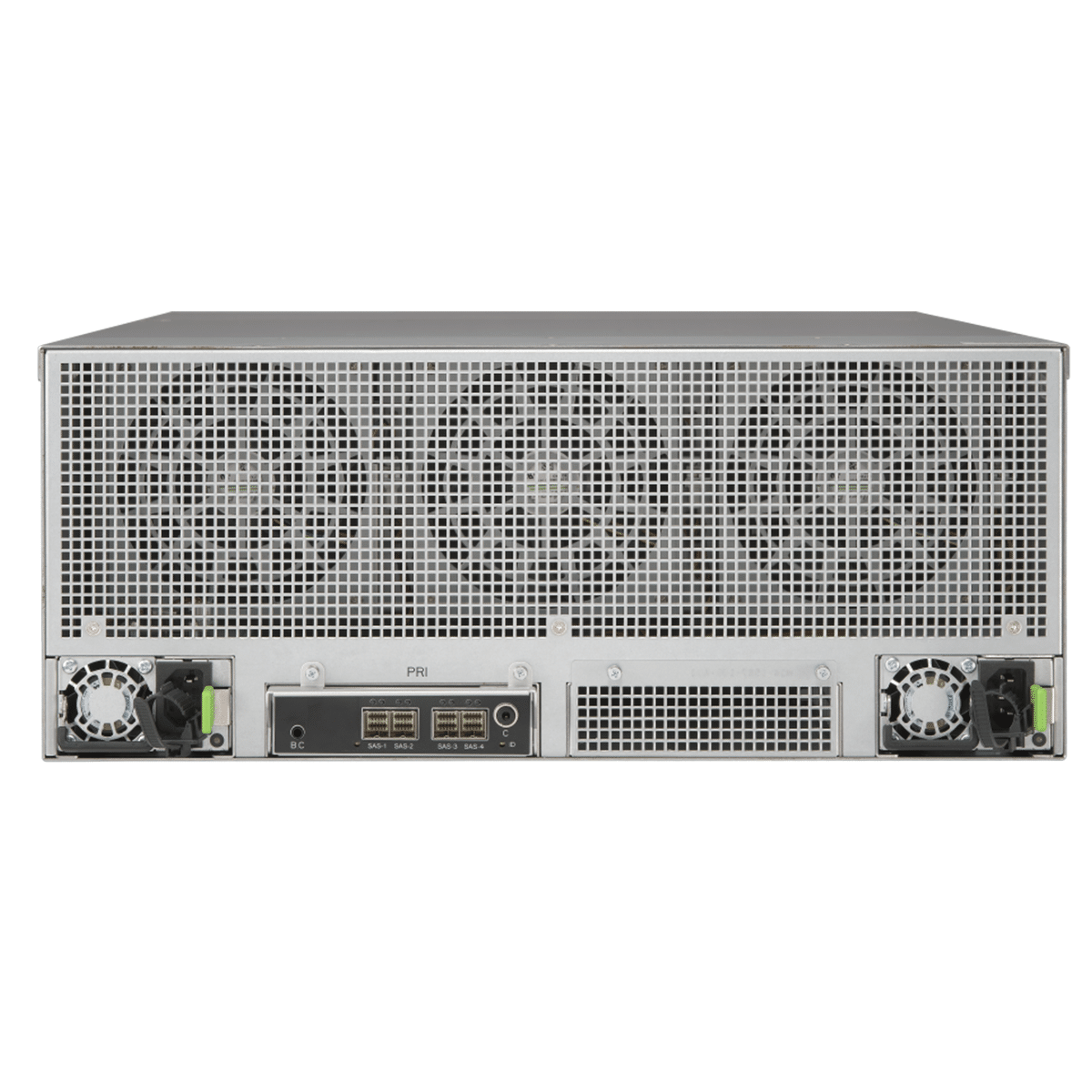

The TL-R6020Sep-RP SAS/SATA storage expansion enclosure in a 60-bay, 4U high-density chassis is the ideal petabyte-level storage expansion solution for QNAP NAS. It provides four high-speed Mini-SAS HD (SFF-8644) ports, supporting SAS 12Gbps transmission interfaces and Broadcom® SAS DataBolt™ bandwidth optimization technology. Its Mini-SAS dual-path redundancy design ensures system operation even if one expansion unit cable fails. Supporting daisy-chaining of up to four units, it’s ideal for cold storage applications such as surveillance video archiving, big data storage, and multimedia image storage.
PB-level capacity per chassis
Up to 60 SAS/SATA hard drives can be installed in a compact 4U chassis, achieving an effective capacity of over 1PB. Note: Requires 24TB (or higher) hard drives and depends on RAID configuration.
Expand to 4 units with 240 hard drives
Up to 4 units can be expanded, bringing the total number of hard drives to 240, allowing for flexible expansion based on business growth to accommodate massive amounts of data or backup files.
Flexible port configuration
By enabling multipath or link aggregation, data transfer between the NAS and SAS storage devices becomes faster and more stable.
QuTS hero system support
Uses the ZFS file system, providing multi-layered data protection mechanisms and a variety of advanced storage services including real-time compression and deduplication, fully unleashing the potential of PB-level capacity.
DataBolt bandwidth optimization
Supports Broadcom® SAS DataBolt™ bandwidth optimization, aggregating two 6Gb/s transmissions into a single 12Gb/s data stream, achieving 12Gb/s SAS high-speed transmission performance.
Designed for easy maintenance and management
The cooling fans and power supply are hot-swappable and optimized for 1000mm-deep rack-mount server cabinets. They ship with pre-installed rails and an optional cable management kit.
Key Features
- 4U space for sixty hard drives
- The TL-R6020Sep-RP provides a single chassis effective capacity of 1 PB, which can meet the capacity requirements of long-term high-definition digital surveillance.
- Flexible cascading of up to 4 JBODs for expansion up to 4PB of the available storage capacity
- Diverse JBOD connection methods improve overall performance
- With 4U of space and sixty hard drives, the TL-R6020Sep-RP significantly reduces rack space usage, power consumption, and weight.

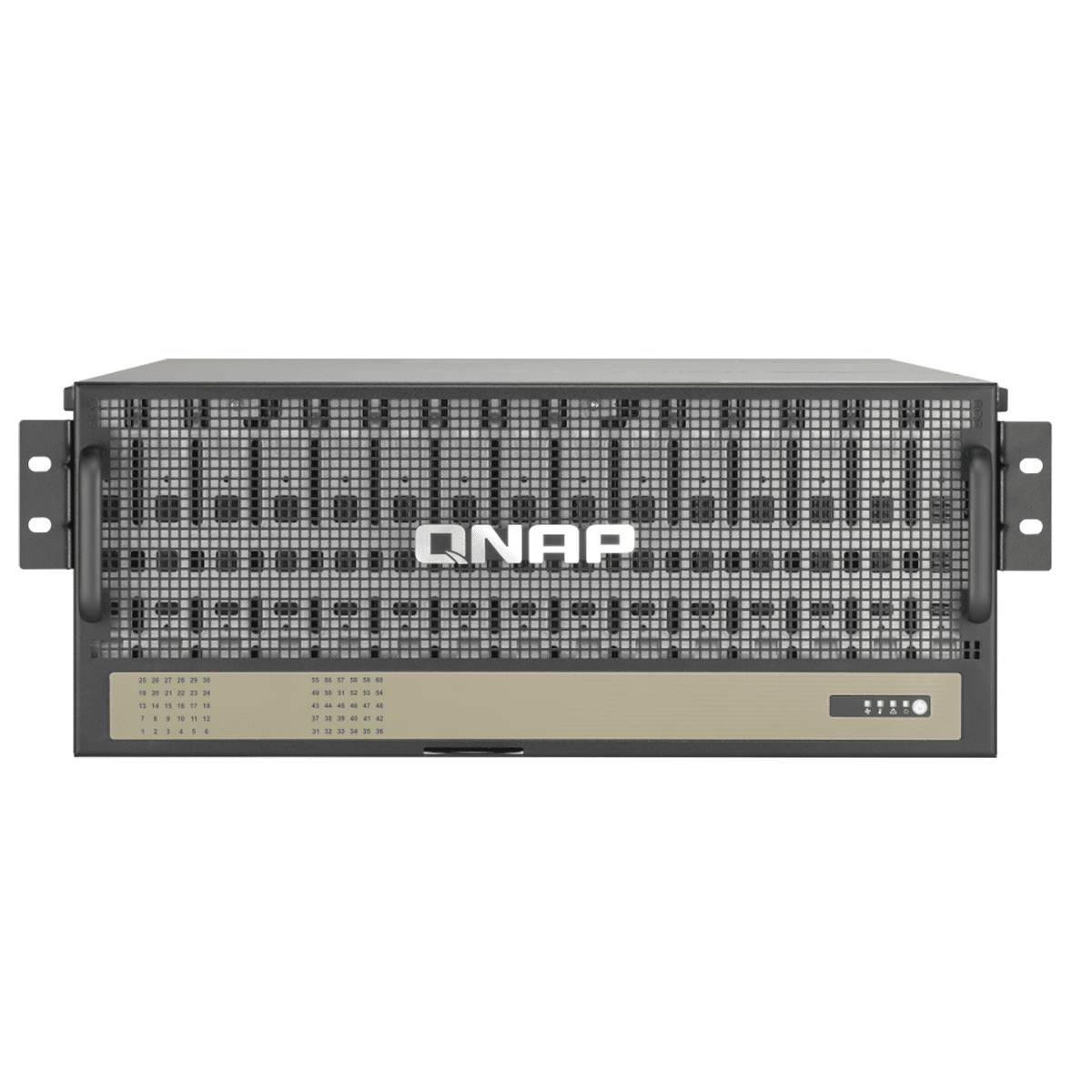

- Monitor each hard drive from the front panel
What’s In The Box
- TL-R6020Sep-RP
- Power Cord x 2
- Rail kit
- Quick Installation Guide (QIG)
