Overview
Designed for studio work
The Echo is a mobile workstation designed for studio work featuring a height adjustable three-sided top shelf, top and bottom locking drawers, permanent wheels, premium foot brake system, and optional Hydraulic Brake System. The Echo is a partially collapsible workstation cart available in two sizes (36 in. or 48 in.) that can be packed down for storage or transportation.
Easy Access
The three-sided top shelf has an open side for easy access to gear as well as comfortable keyboard use. The work surface of the Echo is equipped with a 2.5 in. cable passthrough hole for superior cable management and is finished with INOVATIV’s signature black outdoor marine carpet. The 3-Sided Top is height adjustable in 2 in. increments, with a minimum height of 38.25 in. and maximum height of 48.25 in., measured from the ground to table surface.
Stability
The bottom shelf external mainframe provides stability for an increased payload of up to 1,000 lbs. and incorporates several pass-through holes to house the hydraulic lines of our Hydraulic Brake System. All Echo workstations come standard with two Channel Blocks for mounting additional vertical accessories such as their tripod system or mast riser.

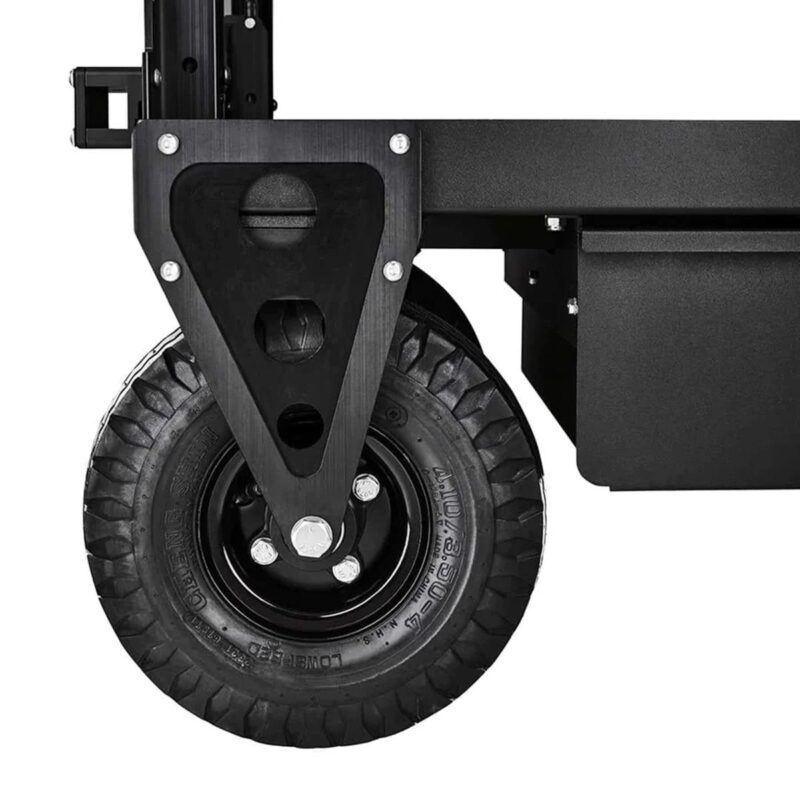

EVO Wheel System
The EVO Wheel System is permanently attached to the Echo for stability and does not quick-release. The 10 in. wheels feature sealed bearings for a smooth ride. Foot Brakes are included standard with the EVO Wheel System.
Quick Grip Handles
The tool-less Quick Grip handles are height adjustable and can be rotated 180 degrees for user customized positioning.
Safe Storage
Soft close combo-locking drawers padded with marine carpet are mounted beneath both the top and bottom shelf for safe storage of personal items.
Accessory Crossbars
The two Accessory Crossbars provide multiple 3/8”-16 mounting points for attaching gear such as the Cable Hooks to the Echo.
Accessory Crossbars
The two Accessory Crossbars provide multiple 3/8”-16 mounting points for attaching gear such as the Cable Hooks to the Echo.
Key Features
- Hydraulic Brake System (Optional)
- Soft-Closing Top and Bottom Combo-Locking Drawers
- Ergonomic Height Adjustable Keyboard Top Shelf
- Permanently Attached 10 in. EVO Wheels with Sealed Bearings
- Foot Brake System
- 1,000 lb Payload Capacity
- Patented Semi-Collapsible Tool-Free Design
What’s In The Box
- (1) Echo
- (2) Quick Grips
- (2) Accessory Crossbars
- (2) Channel Blocks
