Overview
Easy Configuration

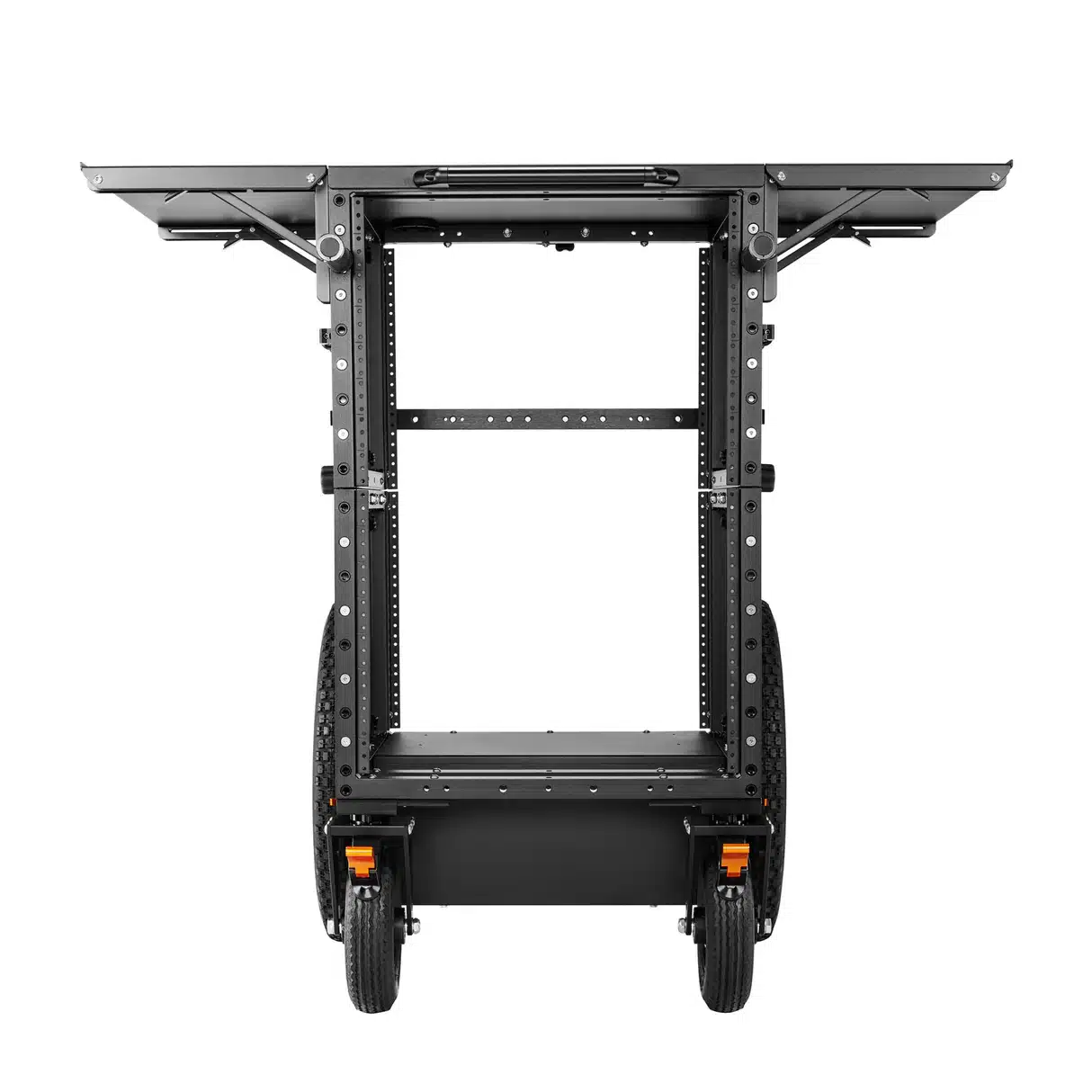

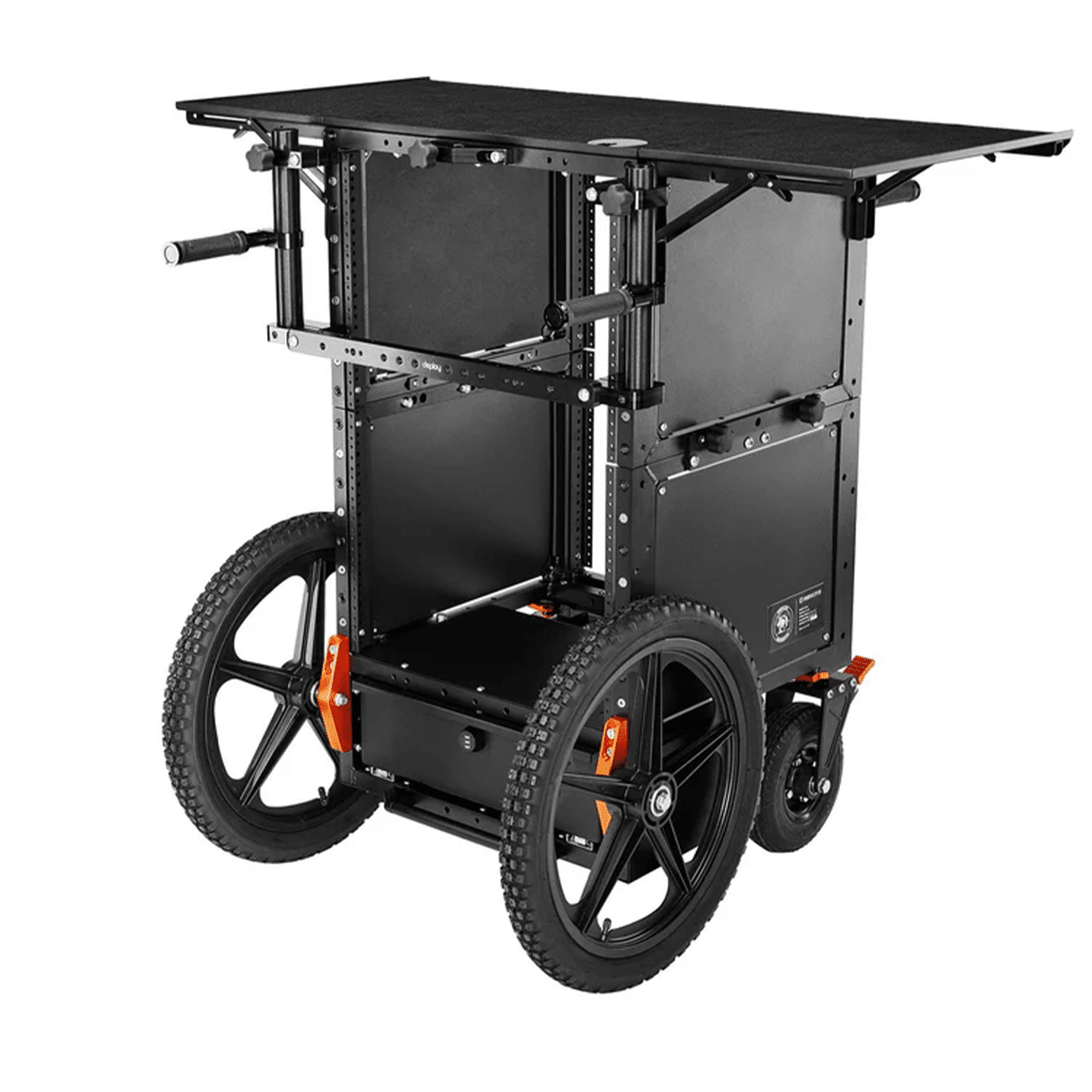

The Deploy (2023) is a mobile vertical rack-mount workstation with 16U of space accessible from both the front and back of the cart. The turnkey configuration allows users to get started from the moment Deploy is unboxed.
New Frame
The 2023 Deploy features an entirely new frame with 16 internal (and replaceable) machined bars that provide a total of 38 integrated 3/8"-16 threaded mounting points for accessory mounting, new aluminum Pull Handles for improved comfort, height adjustable Quick Grips with 360° of rotation, Load Handles that can be mounted to any of the frames 38 mounting points, and a locking bottom drawer.
Standing Workflows
With a tabletop height of 42.5 in., the Deploy provides a comfortable station for standing workflows. Total working surface expands from 21.125 in. to 45.125 in. with side wings extended. When side wings are collapsed, the Deploy is streamlined, compact, and easily maneuverable. The aluminum top surface of the Deploy is equipped with a 2.5 in. cable passthrough hole for superior cable management and is finished with INOVATIV’s signature black outdoor marine carpet.
Easy Transportation
The Deploy frame separates in half for simplified transportation and storage. Four removable aluminum side panels protect the inside of the workstation and still allow easy access to internal rack-mounted components. The Deploy is compatible with industry-standard 19 in. rack-mounted systems.
Customizable
Integrated accessory mounts in several places allow the user to further customize their workstation. Rear Accessory Mounts provide easy connection to INSIGHT Monitor Mount Systems or Two-Stage Risers. A Rear Crossbar supplies additional 3/8"-16 mounting points for accessories like Cable Hooks. Center Mast Bracket provides centered mounting of accessories like the Two-Stage Riser. The Deploy frame features integrated 3/8”-16 threaded mounting points throughout and features 16 replaceable 3/8"-16 accessory bars.
Fit for Travel
Ideal for both studio and on-location use, the Deploy is fit for travel with INOVATIV’s EVO Wheel System on the front and 20 in. traction wheels in the rear. EVO Wheels swivel for navigation, include foot brakes for safety, and can be removed if needed. The 20 in. rear wheels improve mobility over uneven surfaces or rugged terrain.Deploy is designed and manufactured in Southern California with premium grade materials and craftsmanship to ensure reliability.
Key Features
- 16U of Standard 19? Rack Space
- Separate Top and Bottom Half
- Collapsible Side Wings (Double Surface Area When Extended
- Frame with Integrated (Replaceable) 3/8”-16 Mounting Points
- Center Mast Bracket
- Dual Rear Tube Accessory Mounts
- Rear Crossbar with 3/8”-16 and 1/4”-20 Mounting Points
- Screw on Load Handles
- Height Adjustable Quick Grips with 360 Degrees of Rotation
- EVO Wheel System
- 20 in. Rear Wheels for Mobility
- Combo-Locking Bottom Drawer
- Constructed of 5052 and 6061 T6 Aluminum
- Stainless Steel Corrosion Resistant Hardware Throughout
What’s In The Box
- (1) Deploy with Combo Locking Bottom Drawer
- (2) Quick Grips
- (2) Load Handles
- (50) 10-32 x 0.500 Socket Head Stainless Steel Bolts for Accessory Rack Mounting
