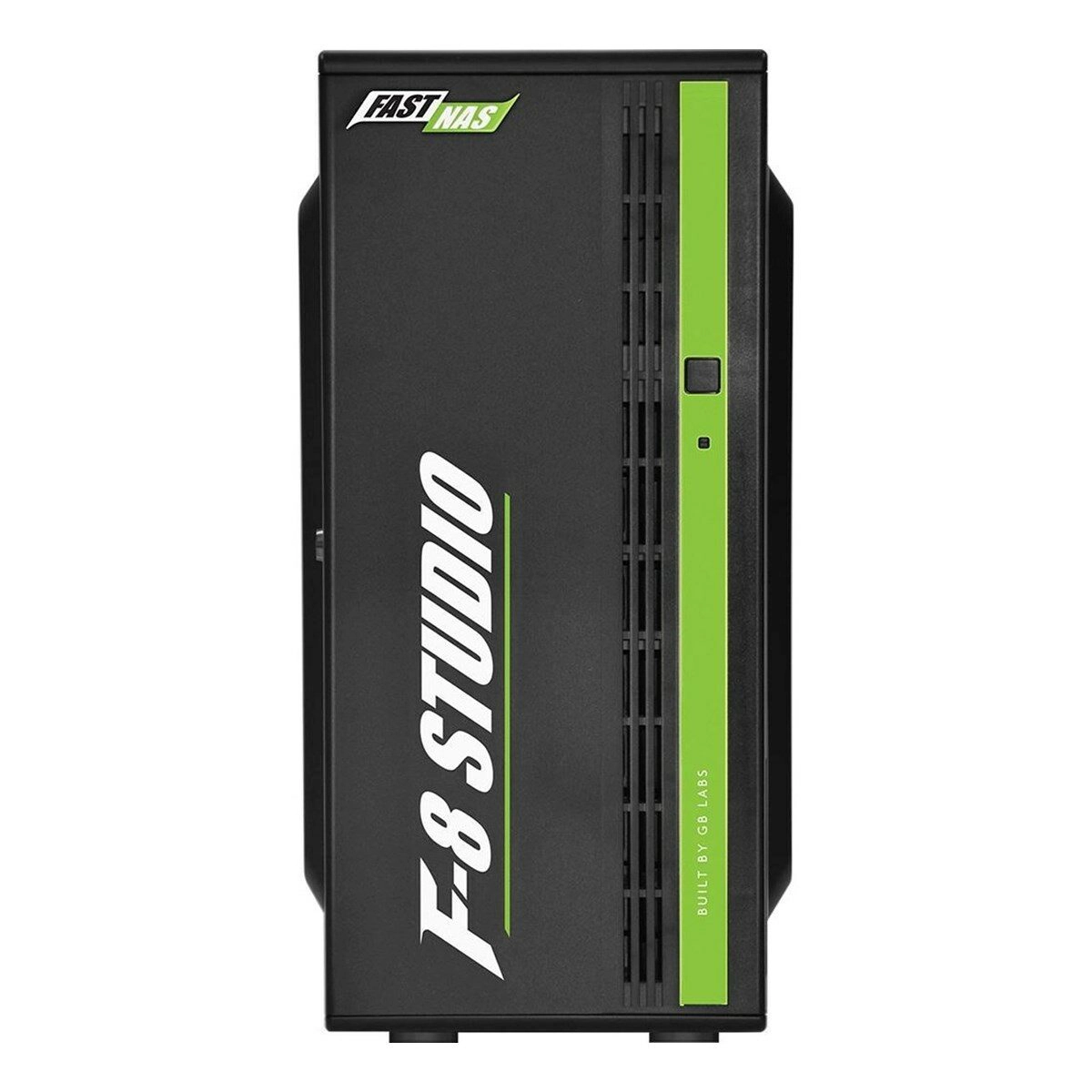

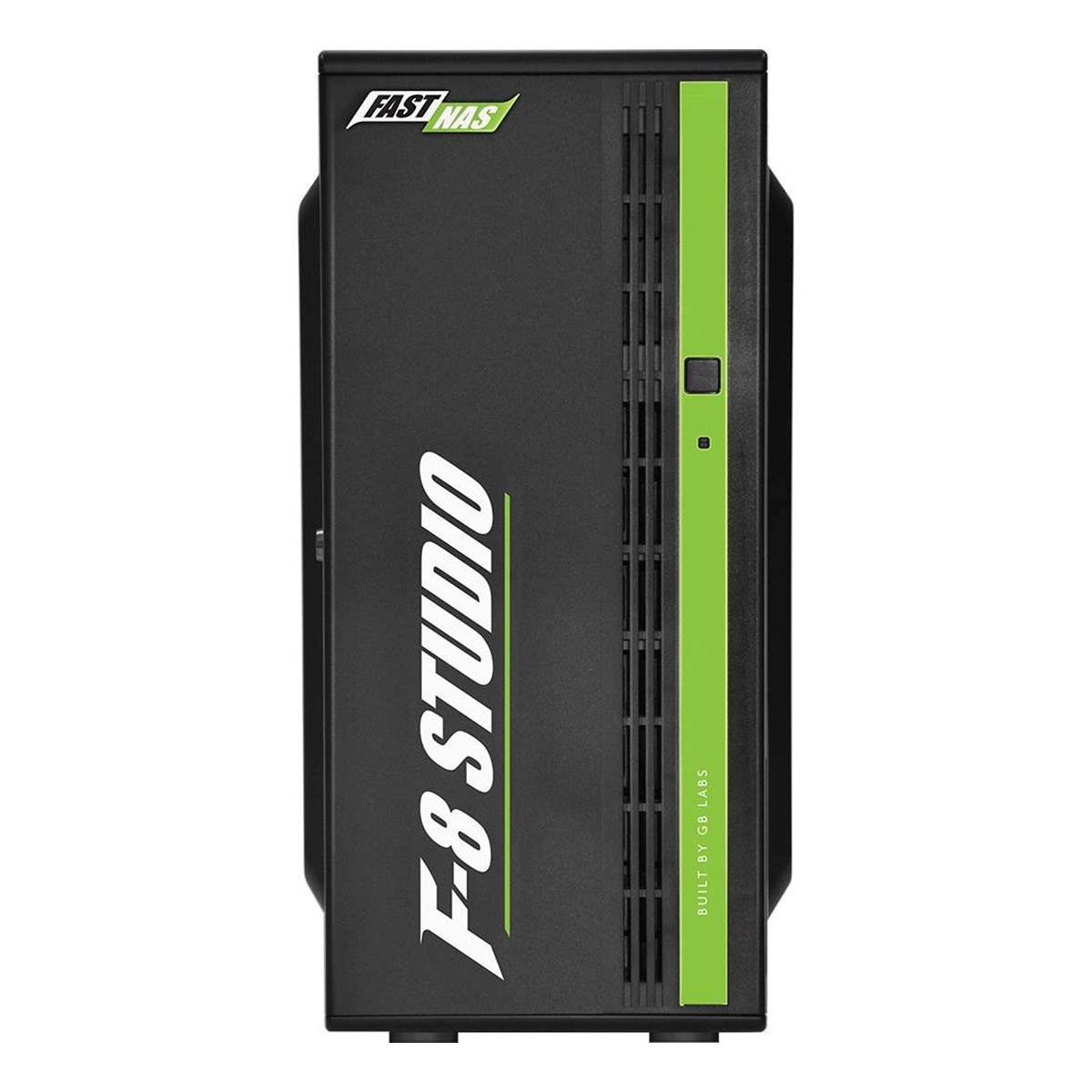

GB Labs FastNAS F8 Nitro Studio

Desktop Media Production
Clear
Brands:GB Labs

Overview

Ultra-quiet desktop delivering SSD performance with HDD capacities powered by GB Labs’ CORE.4 Lite and Nitro hybrid disk technology. Ideal for Creative Professionals, High-End Post Production, Broadcast and Film Facilities.

Technologies: Nitro / IDA / VRE / Mosaic
Capacity: 16 – 96TB
HDD Speed: Up to 1GB/s
Nitro Boost: 512GB at 500MB/s

CONFIGURABLE CAPACITIES

FastNAS F-8 Nitro Studio 16TB, 32TB, 48TB, 64TB, 80TB and 96TB

CONNECTIVITY

On Motherboard

  • 2 x USB 3.0 and 2 x USB 2.0 ports 1 x VGA connector
  • 1 x COM port

Other

  • 4 x 1Gb Ethernet ports (RJ45)
  • 1 x RJ45 dedicated IPMI LAN port

    Option for additional 1Gb, 10Gb, 25Gb and 40Gb Ethernet ports (RJ45 or SFP+)

    UNIT SPECIFICATIONS

    Bootable replacement OS is provided on Rescue Capsule USB drive for fast system recovery.

    Unit dimensions: 8.9cm x 47.3cm x 65.0cm (3.5” x 18.6” x 25.5”)
    Unit weight: 28kg (31.7lbs)
    Input range: 100 – 240 VAC, 50-60Hz
    PSU safety: EMC – USA-UL listed. Canada-CUL listed, Germany-TUV certified, EN60950/IEC 60950-Compliant, CB report, CCC certification
    Power supply: Single redundant 500W removable PSUs / Option for dual redundant 500W removable PSUs
    Power requirements standby: 33W
    Power requirements full load: 350W
    Operating temperature range: 10°C – 35°C
    Non-operating range: -40°C – 70°C
    Operating humidity range: 8 – 90% non-condensing
    Non-operating humidity range: 5 – 95% non-condensing
    Unit form factor: 2U rackmount (rack mounts included)

    Key Features

    • CORE.4 Lite OS
    • IDA
    • Nitro Hybrid Boost
    • RAID 5 Data Protection Velocity RAID Engine (VRE) OS Agnostic
    • Network Loop Protection Replication
    • Active Directory
    • Mosaic
    • File Manager
    Capacity

    16TB, 32TB, 48TB, 64TB, 80TB, 96TB

    Connectivity

    4x1Gb Ethernet as Standard – other options available on request

    Max. Speeds

    Up to 1GB/s

    Power

    Mains Powered

    Brand

    GB Labs

    GB Lab's range of SPACE & FastNAS products represent 15 years of storage innovation in the media industry. All of their solutions have been developed to solve ‘real world’ needs - designed with customers, for customers.
