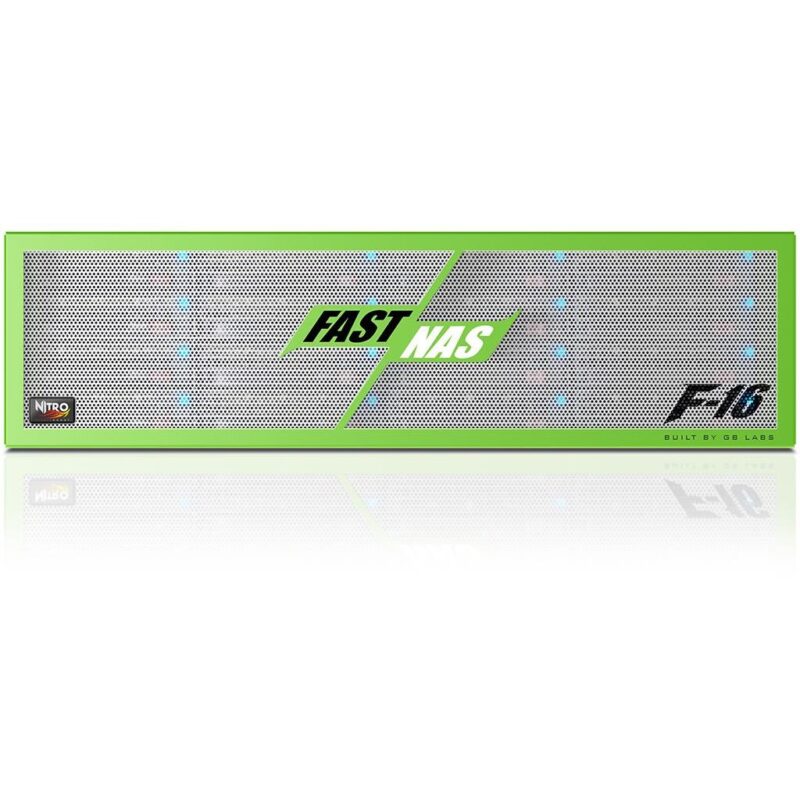

GB Labs FastNAS F16 Nitro

Rack Based Media Production
Clear
Brands:GB Labs

Overview

Delivering SSD performance with greater HDD capacities powered by GB Labs’ Nitro hybrid disk technology and CORE.4 Lite OS tools such as Velocity RAID Engine (V.R.E.) and Mosaic Asset Organiser.

Ideal for medium – large Post-Production houses and collaborative media workflows.

Technologies: Nitro / IDA / VRE / Mosaic
Capacity: 32 – 96TB
Speed: Up to 2GB/s
Nitro Boost: 1TB at 1GB/s
Expandable: Up to 480PB

CONFIGURABLE CAPACITIIES

  • FastNAS F-16 Nitro 32TB, 64TB and 96TB
  • FastNAS F-16 NitroMax 128TB, 160TB and 192TB
  • FastNAS F-16 EX 32TB, 64TB, 96TB, 128TB, 160TB and 192TB

CONNECTIVITY

On Motherboard

  • 2 x USB 3.0 and 2 x USB 2.0 ports
  • 1 x VGA connector
  • 1 x COM port

Other

  • 4 x 1Gb Ethernet ports (RJ45)
  • 1 x RJ45 dedicated IPMI LAN port
  • 13.2cm x 47.3cm x 65.0cm (5.1” x 18.6” x 25.5”) 34.2kg (75.3lbs)
  • 100 – 240 VAC, 50-60Hz

Bootable replacement OS is provided on Rescue Capsule USB drive for fast system recovery.

Unit dimensions: 13.2cm x 47.3cm x 65.0cm (5.1” x 18.6” x 25.5”)
Unit weight: 34.2kg (75.3lbs)
Input range: 100 – 240 VAC, 50-60Hz
PSU safety: EMC – USA-UL listed. Canada-CUL listed, Germany-TUV certified, EN60950/IEC 60950-Compliant, CB report, CCC certification
Power supply: Dual redundant 500W removable PSUs
Power requirements standby: 33W
Power requirements full load: 350W
Operating temperature range: 10°C – 35°C
Non-operating range: -40°C – 70°C
Operating humidity range: 8 – 90% non-condensing
Non-operating humidity range: 5 – 95% non-condensing
Unit form factor: 3U rackmount (rack mounts included)

Key Features

  • CORE.4 OS Lite
  • IDA
  • Nitro Hybrid Boost
  • RAID 6 Data Protection Velocity RAID Engine (VRE) Dynamic Expansion
  • OS Agnostic
  • Network Loop Protection Replication
  • Active Directory
  • Mosaic
  • File Manager
Capacity

32TB, 64TB, 96TB, 128TB, 160TB, 192TB

Connectivity

2 x 10GbE SFP+ & 4x1Gb Ethernet as Standard – other options available on request

Max. Speeds

Up to 2GB/s

Power

Mains Powered

Dimensions

650mm x 132mm x 473mm

Brand

GB Labs

GB Lab's range of SPACE & FastNAS products represent 15 years of storage innovation in the media industry. All of their solutions have been developed to solve ‘real world’ needs - designed with customers, for customers.
