Overview
Ultra HD and 6G-SDI Technology
Make the move to Ultra HD, the broadcast standard of the future, easy! Be prepared now by installing equipment that is fully compatible with all your SD and HD-SDI infrastructure, but will also switch over to Ultra HD via 6G-SDI when you need to run Ultra HD! This means you’re ready for the future and can build your system with full Ultra HD compatibility! Ultra HD features an incredible 4 times the resolution of regular 1080 HD video for a massive 3840 x 2160 frame size! Ultra HD is amazing! The advanced 6G-SDI design also means the new Blackmagic Mini Converters models perform better when used in SD and HD formats than simple HD only converters!
Standard Audio Connections
Mini Converters support embedded SDI and HDMI audio and several models let you separately embed or de-embed analog or digital audio. Mini Converters support 24 bit analog and AES/EBU audio and use standard 1/4" audio jacks so you don't need custom cables!Mini Converters Powerfull Performance
Powerful Performance
Unlike other converters that can be confusing to operate and sometimes identify, Mini Converters combine powerful performance with a simple, compact design! Built-in connections are easy to access and all use standard cables that you're already likely to own!Mini Converters Optical Fiber Conversion
Optical Fiber Conversion
Mini Converter is available in a 6G-SDI to optical fiber model. You get bi-directional 6G-SDI to optical fiber conversion, with each direction independent of each other. Optical fiber cables span distances up to 28 miles without any deterioration to the signal.
Highest Quality Processing
With the highest quality video processing, Mini Converters are ideal for all broadcast, post production and professional AV applications. Multiple internal power supplies ensure incredibly low noise levels when moving between analog and digital video formats. Specific models include up/down/cross conversion that lets you move easily between PAL and NTSC SD video standards and the high number of HD formats in up to 3840 x 2160 Ultra HD resolutions.
Easy Settings Control
Changing Mini Converter's built-in mini switch settings is as easy as using a pen! This is great when you need to change settings quickly as there are no complicated menus to navigate! You can also control settings using the included Converter Utility software.Connect a Mini Converter to any Mac OS X or Windows based laptop or desktop computer! All models can be updated via USB 2.0 by simply downloading software upgrades directly from the Blackmagic Design website.
Key Features
- Embed 4 channels of analogue audio or 8 channels of AES/EBU digital audio into any SDI video connection
- SDI Video Input: Switchable between SD, HD, 3G and 6G-SDI
- SDI Video Output: Automatically matches the SD, HD, 3G and 6G-SDI video input
- Analogue Audio: 4 channels of professional balanced analogue audio with standard 1/4 inch jack connections
- AES/EBU Digital Audio: 8 channels of professional balanced digital with standard 1/4 inch jack connections
- SDI Redundant Input: Automatically switches over if main SDI input is lost
- Auto detection of 4K, UHD, 2K, HD or SD SDI inputs
- Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
- Reclocking: Yes
What’s In The Box

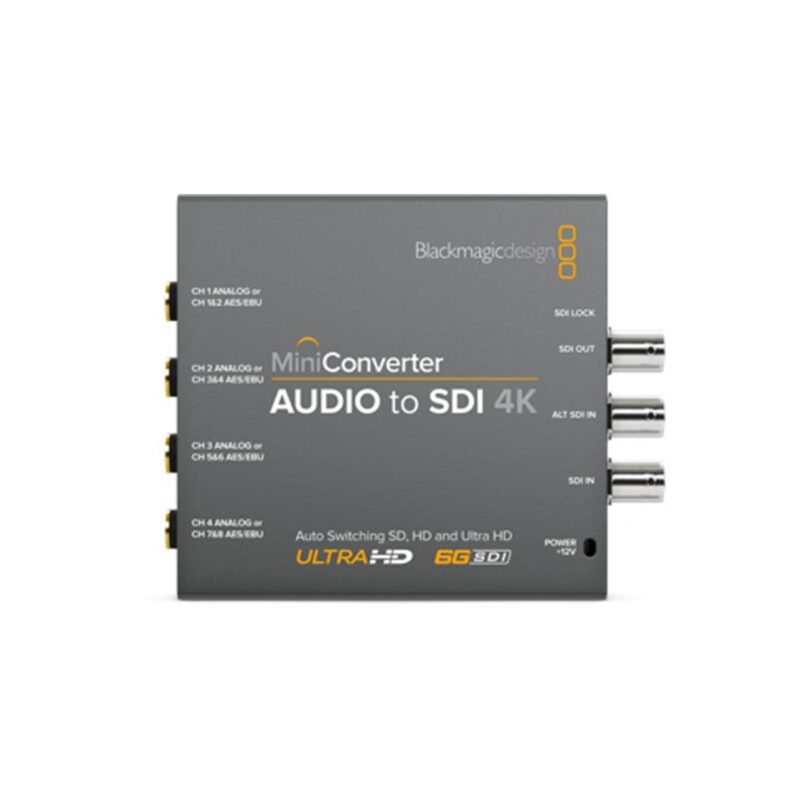

- Mini Converter Audio to SDI 4K
- 12V universal power supply with international socket adapters
