Overview

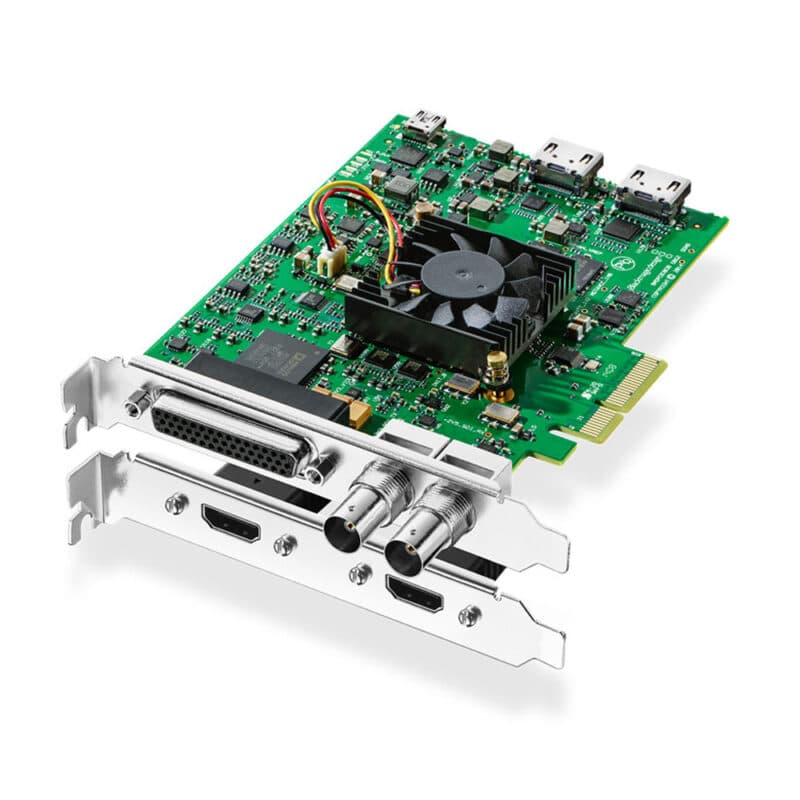

If you work with a wide range of analog video and audio gear, and need to move seamlessly between SD, HD, 2K and Ultra HD, then DeckLink Studio 4K is perfect! DeckLink Studio 4K includes a massive number of analog and digital video connections including SD/HD/Ultra HD 6G-SDI, HDMI 1.4b, SD/HD component, composite, S-video, 4 ch balanced analog audio, 2 ch AES/EBU switchable to 6 ch out, Black Burst and Tri-Sync reference input, RS-422 deck control connections, keying in SD and a hardware down converter.
Perform editing, paint and broadcast design and more with the ultimate future proof design!
Key Features
Connections
- SDI Video Inputs
1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4. - SDI Video Outputs
1 x 10-bit SD/HD/2K/4K. Supports 6G 4:2:2 and 3G 4:4:4. - Analog Video Inputs
1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video. Component supports HD and SD. - Analog Video Outputs
1 x Component YUV on 3 BNCs, 1 x Composite, 1 x S-Video, 1 x SD-SDI. Component supports HD and SD. - Analog Audio Inputs
4 Channels of professional balanced analog audio via 1/4 inch jack connectors. - Analog Audio Outputs
4 Channels of professional balanced analog audio via 1/4 inch jack connectors. Channels 3 & 4 can switch to AES/EBU outputs. - AES/EBU Audio Inputs
2 Channels unbalanced with sample rate converter. - AES/EBU Audio Outputs
2 Channels unbalanced. Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU output audio channels when using this feature. - SDI Audio Inputs
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD. - SDI Audio Outputs
16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD. - HDMI Video Inputs
1 x HDMI type A connector. - HDMI Video Outputs
1 x HDMI type A connector. - HDMI Audio Inputs
8 Channels embedded in SD, HD, 4K. - HDMI Audio Outputs
8 Channels embedded in SD, HD, 4K - Sync Input
Tri-Sync or Black Burst. - Device Control
Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control. - Computer Interface
PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express slots.
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, DNxHR & DNxHD, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4.
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.
What’s In The Box
- DeckLink Studio 4K
- Breakout cable for analog and RS-422 control.
- HDMI bracket
