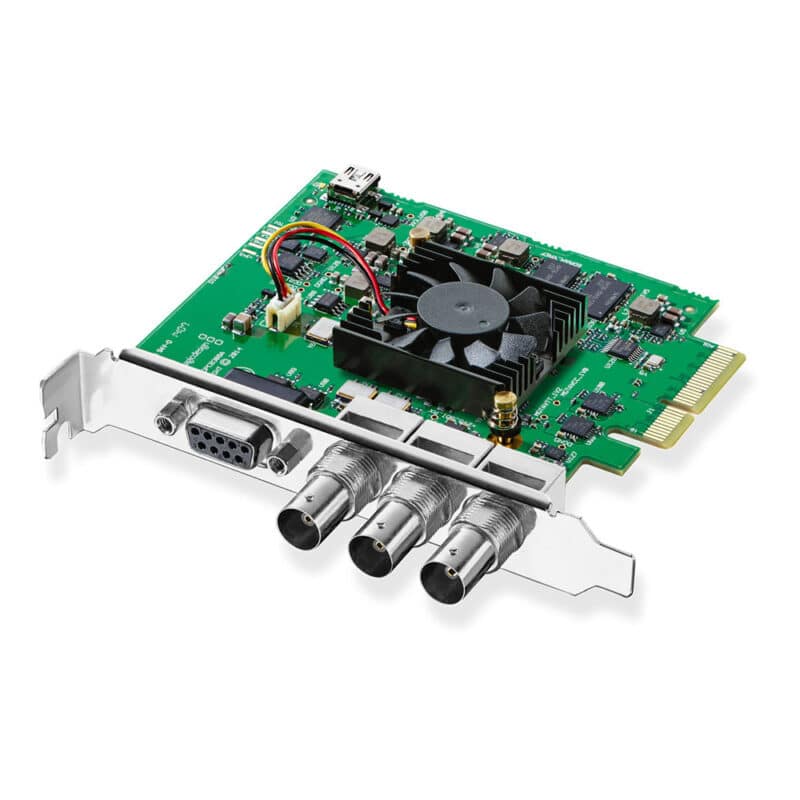

Blackmagic Design DeckLink SDI 4K

£255.00(£306.00 inc. VAT)

More than 20 In Stock

DeckLink SDI 4K is perfect when you need an SDI only solution but demand the highest quality SDI capture and playback.

Availability: In stock

Available To Order - Typical Lead Time 4 Day(s)

Please contact us for more information on the availability of this product.

  • Internal Product Code:
    CCK5378
  • Manufacturer Product Code:
    BDLKSDI4K
  • EAN:
    BDLKSDI4K

    Overview

    DeckLink SDI 4K is perfect when you need an SDI only solution but demand the highest quality SDI capture and playback. You get incredible quality 6G-SDI on any PCI Express Mac, Windows or Linux computer. DeckLink SDI 4K is the world’s smallest and most affordable multi rate SD/HD and Ultra HD SDI video card that lets you connect to any SD, HD-SDI, 2K and Ultra HD equipment.

    You also get RS-422 deck control, internal keying and reference input for a complete solution for editing, paint, design and more.

    Key Features

    Connections

    • SDI Video Inputs
      1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4.
    • SDI Video Outputs
      1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4.
    • SDI Audio Inputs
      16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
    • SDI Audio Outputs
      16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
    • Sync Input
      Tri-Sync or Black Burst.
    • Device Control
      Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
    • Computer Interface
      PCI Express 4 lane generation 2, compatible with 4,8 and 16 lane PCI Express slots.

    Supported Codecs

    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4.

    Software Included

    Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

    Internal Software Upgrade

    Firmware built into software driver. Loaded at system start or via updater software.

    Physical Installation

    PCI Express 4 lane generation 2, compatible with 4, 8, 16 lane PCI Express slots on Mac OS, Windows and Linux. Please check the Support pages to see the full system requirements.

    What’s In The Box

    • DeckLink SDI 4K

    Brand

    Blackmagic Design

    Blackmagic Design designs and manufactures broadcast and cinema hardware for the feature film, post and broadcast industries.
