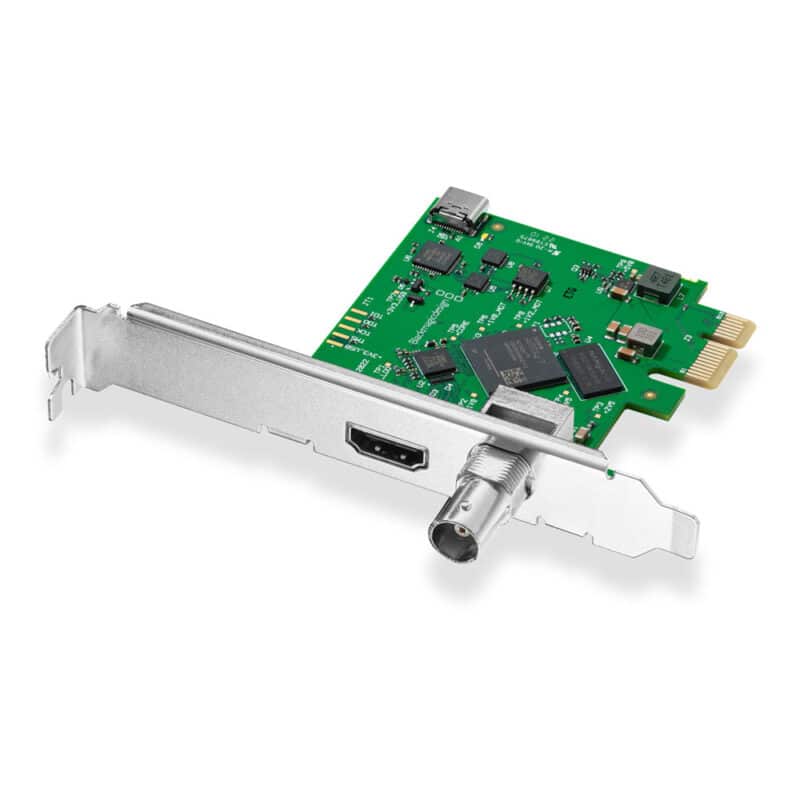

Blackmagic Design DeckLink Mini Recorder HD

£115.00(£138.00 inc. VAT)

More than 20 In Stock

Get broadcast quality HDMI and SDI video capture for your PCIe computer!

Availability: In stock

Available To Order - Typical Lead Time 4 Day(s)

Please contact us for more information on the availability of this product.

  • Internal Product Code:
    CCK5376
  • Manufacturer Product Code:
    BDLKMINIREC3G
  • EAN:
    BDLKMINIREC3G

    Overview

    Get broadcast quality HDMI and SDI video capture for your PCIe computer! DeckLink Mini Recorder HD features 3G-SDI and HDMI 2.0 for recording SD and HD formats up to 1080p60 and 2Kp60 DCI!

    You get a broadcast quality capture card that’s compatible with virtually all SD and HD equipment and popular video software such as DaVinci Resolve and more!

    Key Features

    Connections

    • SDI Video Input
      1 x 10-bit SD/HD switchable
    • SDI Rates
      270Mb, 1.5G, 3G
    • SDI Audio Input
      16 channels embedded in SD/HD
    • HDMI Video Input
      1 x HDMI 2.0 type A connector
    • HDMI Audio Input
      8 channels embedded in SD/HD
    • Computer Interface
      PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots.

    Supported Codecs

    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

    Software Included

    Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

    Internal Software Upgrade

    Firmware built into software driver. Loaded at system start or via updater software.

    Physical Installation

    PCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

    What’s In The Box

    • DeckLink Mini Recorder HD
    • Low profile slot bracket

    Brand

    Blackmagic Design

    Blackmagic Design designs and manufactures broadcast and cinema hardware for the feature film, post and broadcast industries.
