Overview

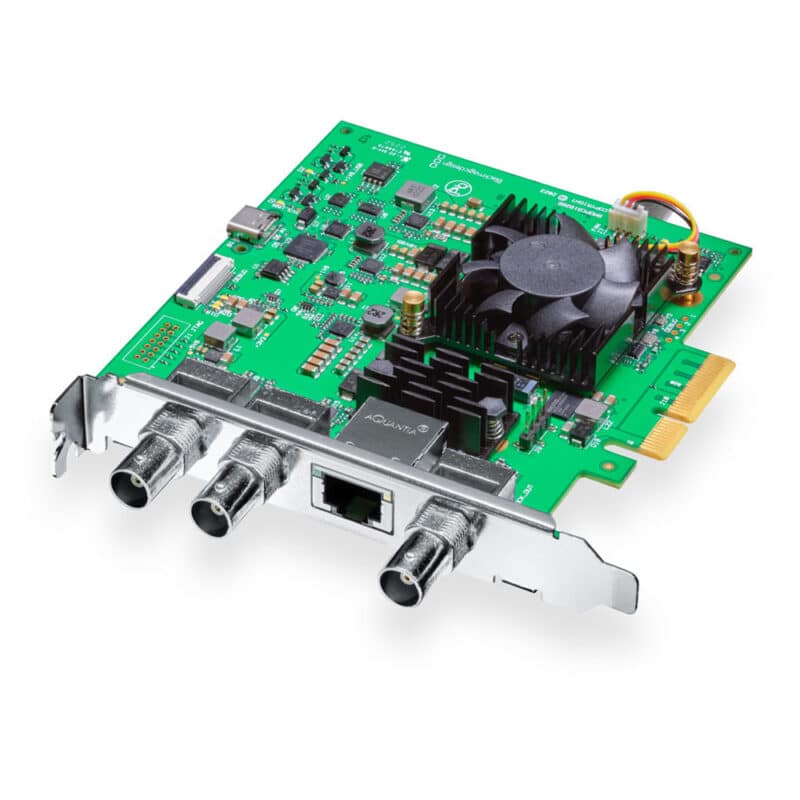

Connect to both 3G-SDI and 2110 IP systems with DeckLink IP/SDI HD. It has 2 capture and playback channels to 2110 IP via RJ45 Ethernet, 2 direction configurable 3G-SDI connections and reference out.
It is designed to work with the highest quality video with support for capture and playback to popular video formats such as Apple ProRes, DNxHD or even 10-bit uncompressed, and supports 525i, 625i, 720p, 1080i and 1080p video standards up to 1080p60.
Key Features
Connections
- SDI Ports
2 x bidirectional 12-bit SD/HD independently configurable as either Input or Output.
16 channels audio embedded in SD and HD. - 10G Ethernet Port
1 x 10G BASE-T
10G ethernet supports 2 input channels and 2 output channels, each up to 1080p60 with 16 audio channels. - Sync Output
Tri-Sync or Black Burst. - Computer Interface
PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
What’s In The Box
- DeckLink IP/SDI HD
- Welcome wallet with QR code for software download
