Overview

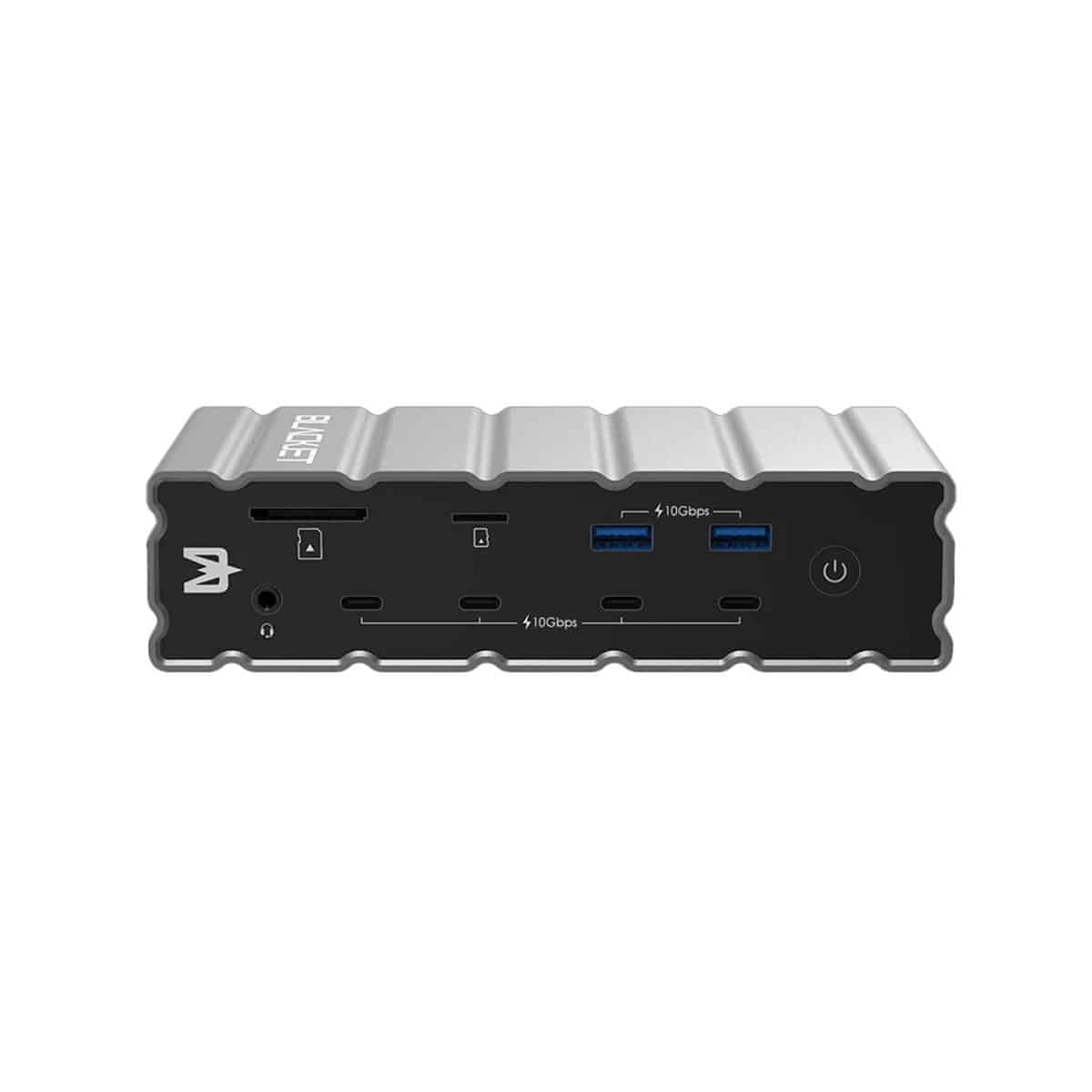

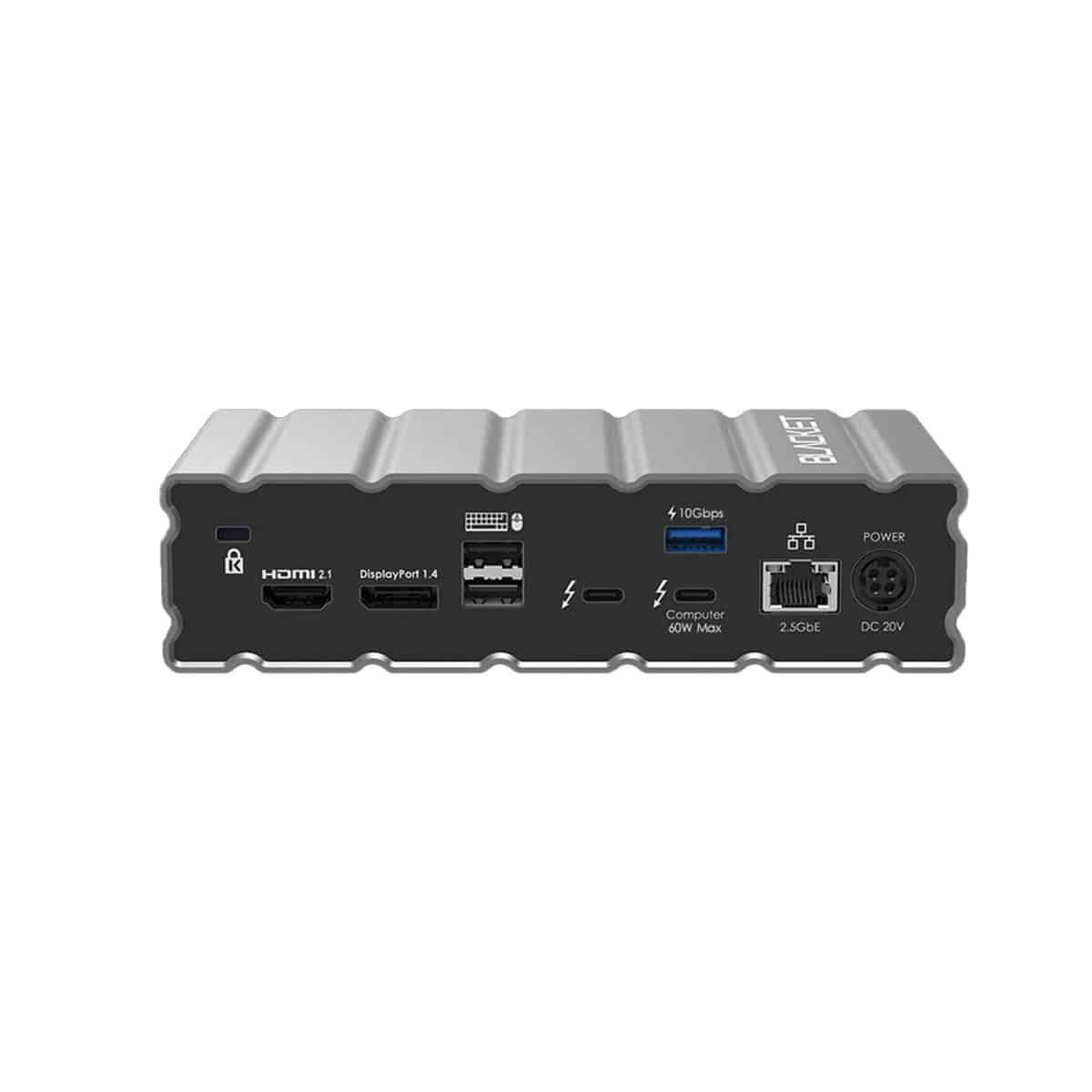

The RX-4 is a docking station that utilizes the large bandwidth 40Gbps of Thunderbolt™ 4, which allows you to expand the connectivity options of your computer by providing 17 ports for various devices. It connects to your computer via a single Thunderbolt 4 cable and offers a variety of ports, including four USB-C 3.2 Gen 2 ports, three USB-A 3.2 Gen 2 ports, two Thunderbolt 4 ports, a 2.5Gbe Ethernet port, an HDMI 2.1 port, and a DisplayPort 1.4.
The dock also includes a 3.5mm audio jack for headphones or speakers and a SD and microSD card reader for convenient access to your camera’s memory cards. Additionally, the dock provides up to 60 watts of power delivery to charge your laptop while you work.

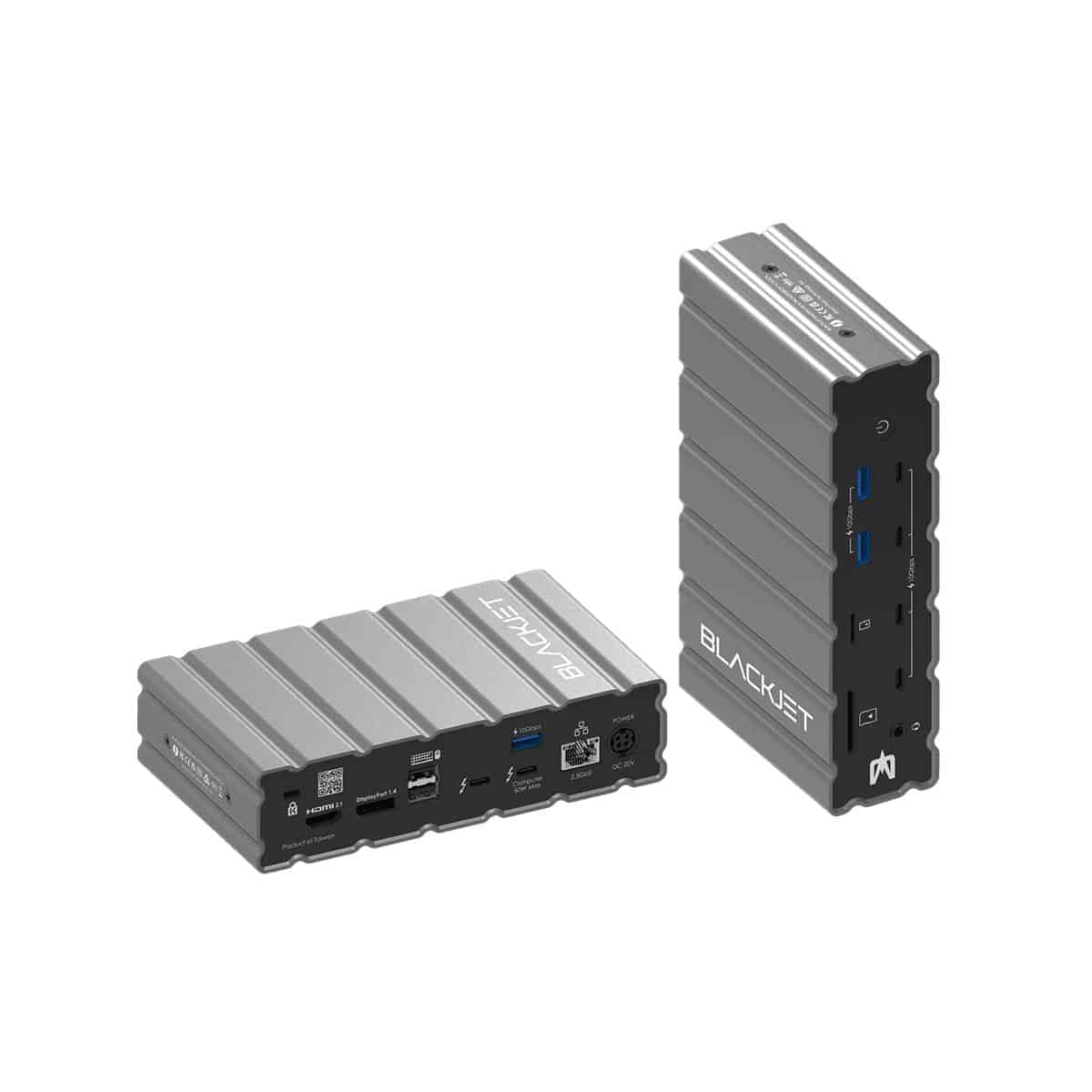

One of the standout features of the RX-4 Raiden dock is its ability to be used in many configurations. You can use it horizontally or vertically depending on your workspace. Additionally, you can rack mount the RX-4 to a 1U rack mount system (with rack mount tray sold separately). It’s also built with aluminum construction for durability and heat dissipation and includes a built-in Kensington security slot to protect and secure your dock.
Key Features
- Two Thunderbolt 4 ports (one upstream and one downstream)
- Four USB-C 3.2 Gen 2 Ports
- Three USB-A 3.2 Gen 2 Ports
- Two USB-A Ports for Keyboard and Mouse connection
- SD UHS-II Media Reader up to 300 MB/s
- microSD UHS-II Media Reader up to 250 MB/s
- Audio In/Out combo jack
- 2.5Gbe Ethernet Port for networking
- Kensington Lock supported for security
- Provides up to 60W of charging for laptop
- HDMI 2.1 support 8K@30Hz (Max)
- DisplayPort 1.4 support 8K@30Hz (Max)
What’s In The Box
- RX-4 Raiden Docking Station
- Thunderbolt 4 Cable
- Power Supply

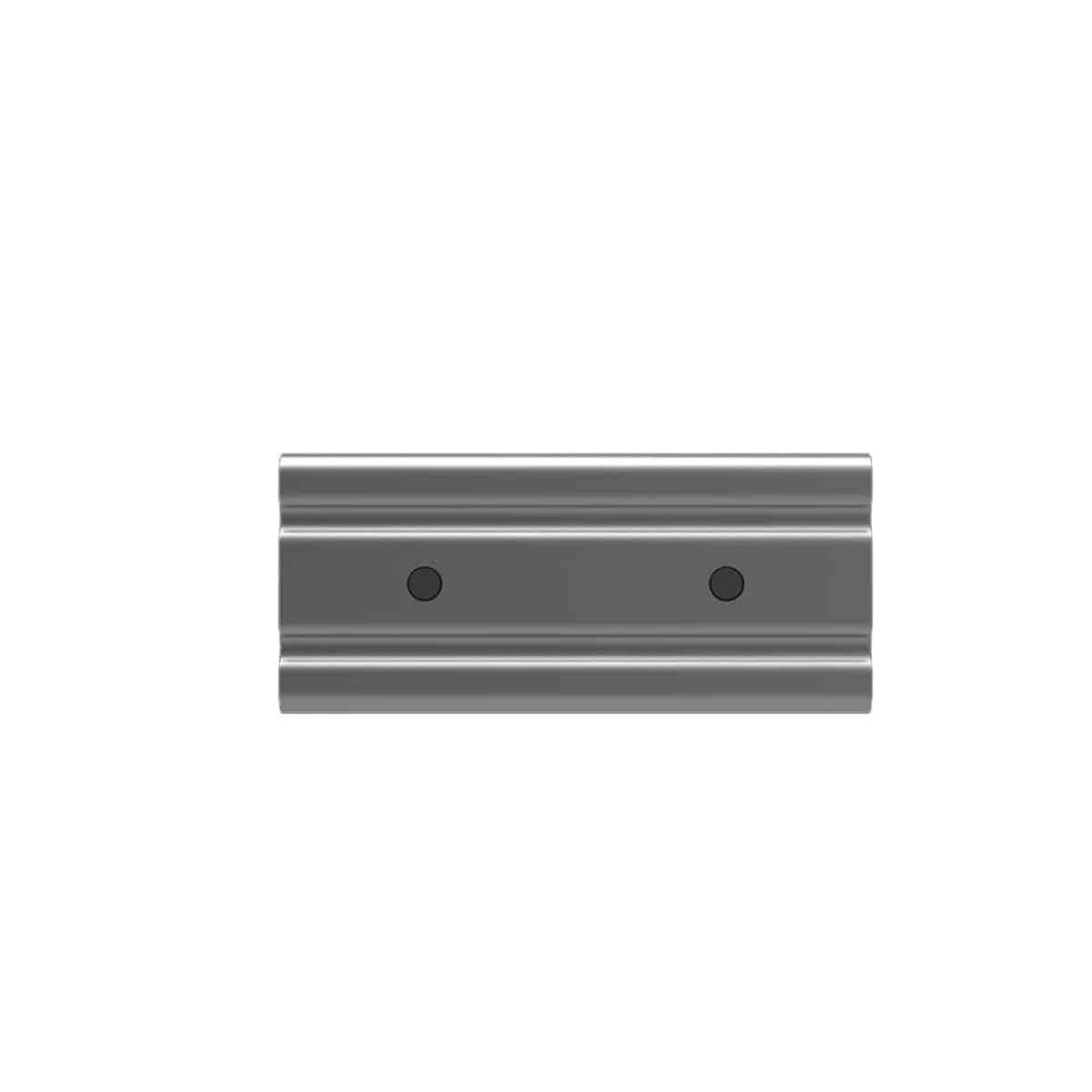

- Mounting Kit
- User’s Guide
Available SKUs
| Variation | Manufacturer SKU |
|---|---|
| Space Grey | BJ-0220-R01 |
| Black | BJ-0220-R02 |
