Blackmagic Design DeckLink IP HD

£305.00(£366.00 inc. VAT)

More than 20 In Stock

DeckLink IP HD features 3 channels of video capture and 3 channels of video playback to 2110 IP broadcast systems.

Availability: In stock

Available To Order
This product is available to order (typically ships within 5 business days).
  • Internal Product Code:
    CCK5368
  • Manufacturer Product Code:
    BDLKIPBIP/HD
  • EAN:
    BDLKIPBIP/HD

    Overview

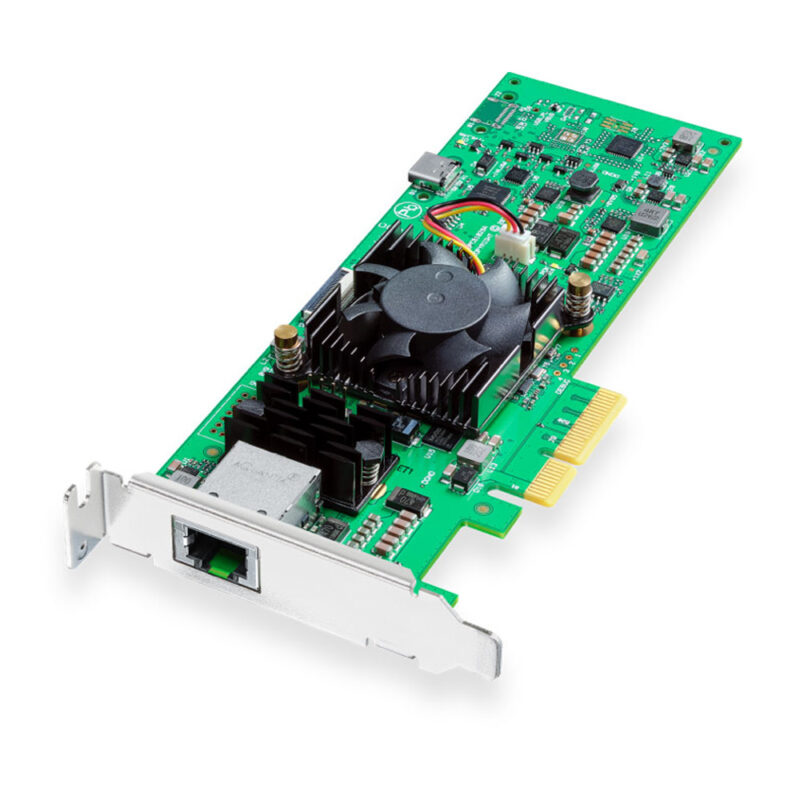

    DeckLink IP HD features 3 channels of video capture and 3 channels of video playback to 2110 IP broadcast systems via a single RJ45 style Ethernet connection. It is designed to work with the highest quality video with support for capture and playback to popular video formats such as Apple ProRes, DNxHD or even 10-bit uncompressed.

    DeckLink IP connections are multi rate so they support 525i, 625i, 720p, 1080i and 1080p video standards up to 1080p60.

    Key Features

    Connections

    • 10G Ethernet Port
      1 x 10G BASE-T
      10G ethernet supports 3 input channels and 3 output channels, each up to 1080p60 with 16 audio channels.
    • Computer Interface
      PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.

    Supported Codecs

    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4

    Software Included

    Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

    Internal Software Upgrade

    Firmware built into software driver. Loaded at system start or via updater software.

    Physical Installation

    PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.

    What’s In The Box

    • DeckLink IP HD
    • Low profile slot bracket
    • Welcome wallet with QR code for software download

    Brand

    Blackmagic Design

    Blackmagic Design designs and manufactures broadcast and cinema hardware for the feature film, post and broadcast industries.
