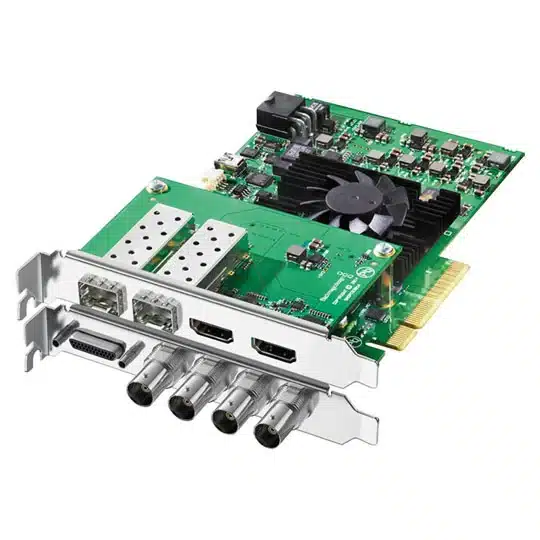

Blackmagic Design DeckLink 4K Extreme 12G

£845.00(£1,014.00 inc. VAT)

More than 20 In Stock

Advanced digital cinema capture card featuring full frame DCI 4K

Availability: In stock

Available To Order - Typical Lead Time 4 Day(s)

Please contact us for more information on the availability of this product.

  • Internal Product Code:
    CCK5360
  • Manufacturer Product Code:
    BDLKHDEXTR4K12G
  • EAN:
    BDLKHDEXTR4K1

    Overview

    Advanced digital cinema capture card featuring full frame DCI 4K input and output via 12G-SDI! You get dual link multi rate 12G-SDI connections that work with SD, HD and Ultra HD even in Ultra HD 60p, as well as full frame DCI 4K at 4096 x 2160 resolution up to 25p! Capture 10-bit YUV or full color bandwidth 12-bit RGB.

    Includes AES/EBU audio, up, down and cross conversion, plus built in 3D stereoscopic output at full bandwidth 4:4:4:4 RGB! No other capture and playback card supports more video formats and video connections!

    Key Features

    Connections

    • SDI Video Inputs
      2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.
    • SDI Video Outputs
      2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.
    • Analog Video Inputs
      1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD.
    • Analog Video Outputs
      1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD.
    • Analog Audio Inputs
      2 Channels of professional balanced analog audio via XLR connectors.
    • Analog Audio Outputs
      2 Channels of professional balanced analog audio via XLR connectors.
    • Optical Fiber Inputs/Outputs (Optional)
      2 x 12Gb/s Optical Fiber.
    • AES/EBU Audio Inputs
      2 Channels unbalanced with sample rate converter.
    • AES/EBU Audio Outputs
      2 Channels unbalanced.
    • SDI Audio Inputs
      16 Channels embedded in SD/HD/2K/4K.
    • SDI Audio Outputs
      16 Channels embedded in SD/HD/2K/4K.
    • HDMI Video Inputs
      HDMI type A connector with support for 2160p60.
    • HDMI Video Outputs
      HDMI type A connector with support for 2160p60.
    • HDMI Audio Inputs
      8 Channels embedded in SD/HD/4K
    • HDMI Audio Outputs
      8 Channels embedded in SD/HD/4K.
    • Sync Input
      Tri-Sync or Black Burst.
    • Device Control
      Sony™ compatible RS422 deck control port. Serial ports TxRx direction reversible under software control.
    • Computer Interface
      PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots with HDMI or SDI mezzanine card.

    Supported Codecs

    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

    Software Included

    DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

    What’s In The Box

    • DeckLink 4K Extreme 12G
    • HDMI mezzanine card
    • Breakout cable for analog and RS-422 control
    • External power cable
