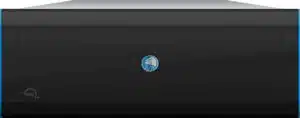

The envy of your

server room.

UP TO SIXTEEN 10G/1G
Direct Connections
REMOTE ACCESS
For Growing Teams
96TB-432TB RAW
Storage Capacity
4x EXPANDABILITY
Add Up to 3 JBODs

CONNECTIVITY

Plug & Play, Switch Optional

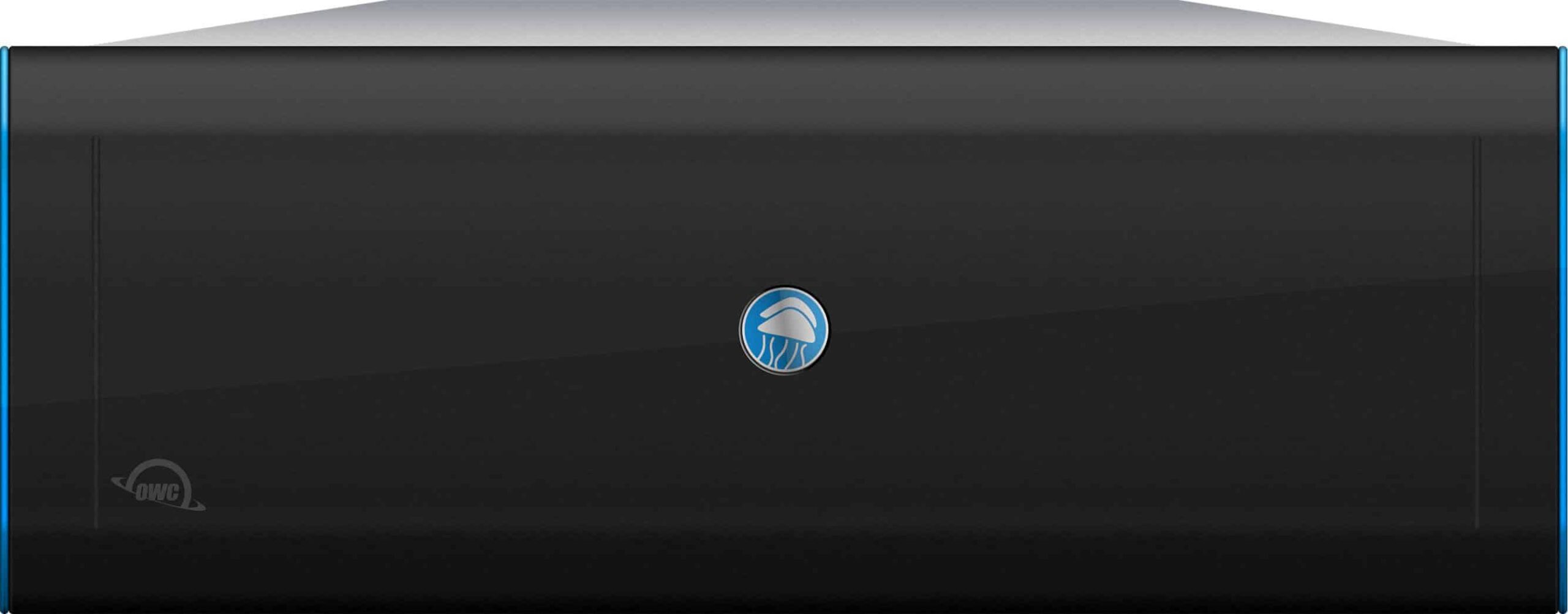

The OWC Jellyfish R24 video editing server can be used with or without a switch. Users can connect directly into one of up to 16 onboard 1GbE or 10GbE ports, or add a switch for greater expansion. There is no limit to the number of users connected simultaneously.
spec-icn-1G-10G
spec-icns-25-40-50

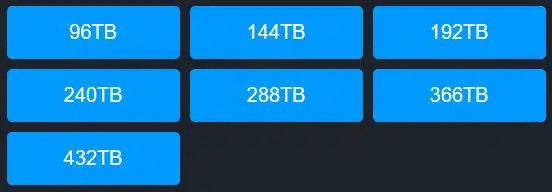

STORAGE

Multiple Capacities, with Room to Grow

The OWC Jellyfish R24 video editing server is listed with a raw capacity number and a Working Space number. Working Space is what’s actually available for storage after RAID, performance buffers, and overhead are applied.

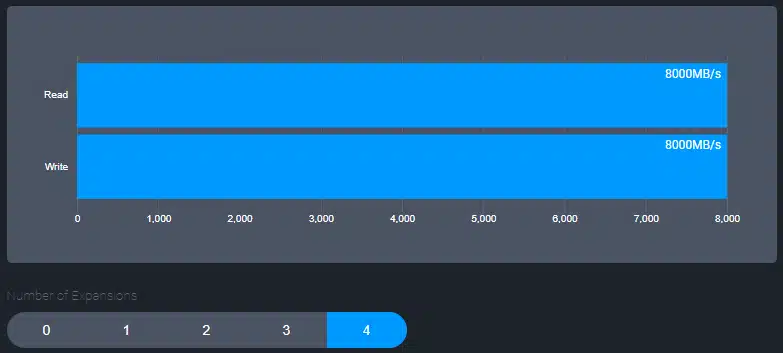

PERFORMANCE

A Bandwidth Beast in 4U

OWC Jellyfish R24 is the workhorse of the modern video team. It makes quick work of the most demanding RAW workflows, multicam sequences, and finishing jobs, which means you can say yes to anything thrown your way.

SETUP & SOFTWARE

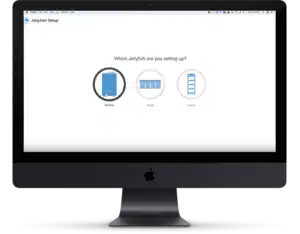

SETUP IS SIMPLE

The OWC Jellyfish R24 was designed to be unboxed and up and running in under 30 minutes with no prior networking experience required. You will be guided through each step of the setup online, and if you need additional help our support team is only a phone call away.

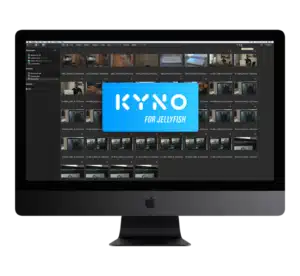

KYNO FOR OWC JELLYFISH

Your OWC Jellyfish comes with free unlimited licenses for Kyno for OWC Jellyfish which allows you to organize and filter through your entire media library using rich metadata, custom tags, and ratings. Kyno for OWC Jellyfish integrates with your editing software so the clips you already tagged arrive in your project organized and ready to be found.

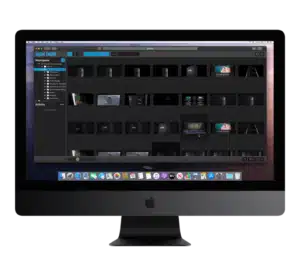

OWC JELLYFISH MEDIA ENGINE

Leverage the processing power of your OWC Jellyfish to generate proxies for your offline or remote workflows. Access those proxies locally or remotely and link them to your project. Switch to proxy mode in your editing software and enjoy smooth playback no matter your connection speed. OWC Jellyfish Media Engine comes free with your OWC Jellyfish purchase to provide your team with an extra level of flexibility.

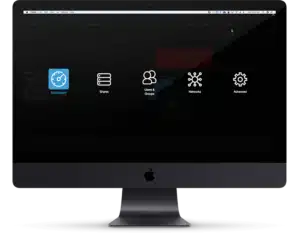

OWC JELLYFISH MANAGER

If you’ve never had to manage a server before, OWC designed the Jellyfish Manager for you. If you have managed a server before, you’ll wonder why they weren’t all this intuitive or easy to use.

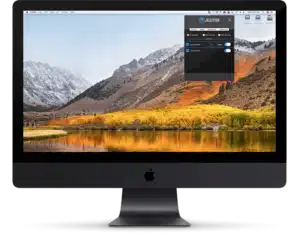

OWC JELLYFISH CONNECT

OWC have made connecting your Mac to the OWC Jellyfish R24 easier than ever with their patented OWC Jellyfish Connect app for macOS. Just open the app on your computer, let it work its magic, and get right to work.

OS COMPATIBILITY

The OWC Jellyfish R24 video editing server is compatible with Mac, Windows, and Linux operating systems and supports a mixed hardware / software environment.

NLE COMPATIBILITY

Work in the NLE, DAW, or VFX software of your choosing, or use them all. OWC’s engineers work closely with Apple, Adobe, and Blackmagic to ensure seamless workflows between your favorite apps.

DEEP SPECS

USERS & CONNECTIVITY

MAXIMUM DIRECT CONNECTIONS
16
SWITCH REQUIRED

NO

BASE CONFIG.

512GB DDR4 RAM

2TB Read Cache SSD

8TB Dedicated Project/Cache NVMe Pool

4 x 10GbE RJ45 Ports

BASE CONFIG.

Add 1GbE [RJ45]

Add 10GbE [RJ45 // SFP+]

Add 25GbE [QSFP]

Add 40GbE [QSFP]

Add 50GbE [QSFP]

STORAGE

AVAILABLE CAPACITY
96TB, 144TB, 192TB, 240TB, 288TB, 336TB, 432TB
USABLE STORAGE SIZE

65TB, 97TB, 129TB, 162TB, 194TB, 227TB, 291TB

EXPANDABILITY

Add up to 3 additional OWC Jellyfish R24E (expansion) units anytime over the included 12G HD Mini-SAS port.

PERFORMANCE

AGGREGATE BANDWIDTH

4200MB/s Read

2400MB/s Write

PER USER SPEEDS

10GbE User – 650-1000MB/s

1GbE User – 100MB/s

DATA SECURITY

RAID PROTECTION

All OWC Jellyfish utilize ZFS RAID which adds an extra layer of protection to your data since all data and metadata are stored on your pool.

STANDARD RAID Z2

By default, the OWC Jellyfish R24 can sustain the failure of up to 2 hard drives per 8-disk virtual device, up to a maximum simultaneous failure of 6 physical drives per pool.

BACKUP & ARCHIVE

Rsync
Snapshots

PHYSICAL SPECS

DIMENSIONS

Height 7 inches

Depth 28 inches

Width 19 inches

Weight 90 lbs.

FORM FACTOR

Rack – 4U

MAX NOISE LEVEL

~71 Decibels Under Heavy I/O

POWER SUPPLY

875 Watt

Redundant

ADDITIONAL SERVER ACCESS

IPMI

USB 3 [x4]

VGA PORT

PROTOCOL SUPPORT

SMB
NFS
sFTP
SSH

MISC.

Integrated DaVinci Resolve Collaborative Database

Encryption Options Available
