UP TO SIX 10G/1G
Direct Connections
REMOTE ACCESS
For Growing Teams
32TB-96TB RAW
Storage Capacity
2x EXPANDABILITY
Add Up to 1 JBOD

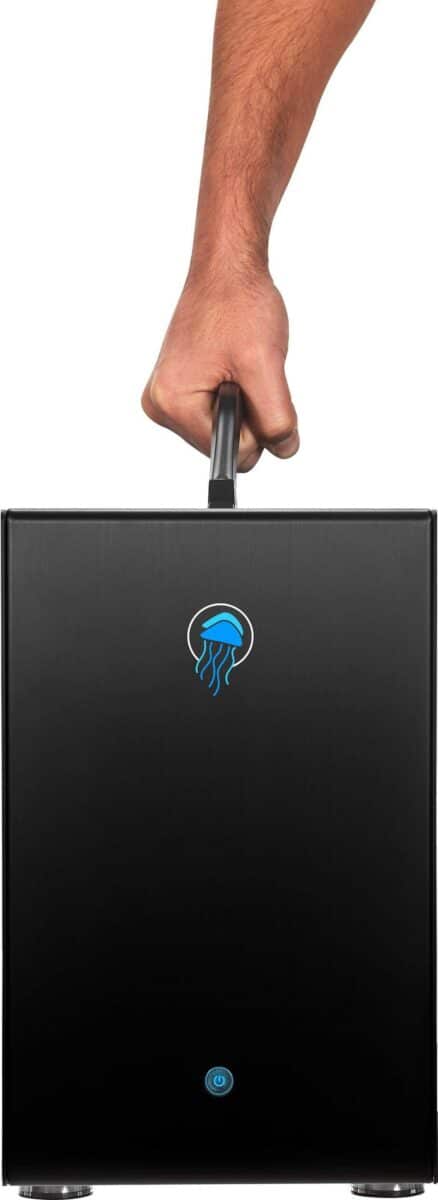

The first ever mobile video editing server.

CONNECTIVITY

Plug & play, 1GbE & 10GbE

The OWC Jellyfish Mobile server is designed to be used in the office and without a switch. Users can connect directly into one of up to 10 onboard 1GbE or 10GbE ports. There is no limit to the number of users connected simultaneously if adding a switch.
spec-icn-1G-10G
spec-icn-desktopM

STORAGE

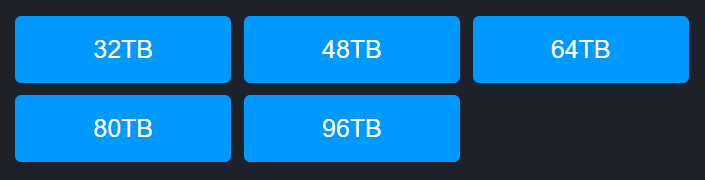

5 capacity points to choose from with room to grow

OWC Jellyfish Mobiles are listed with a raw capacity number and a Working Space number. Working Space is what’s actually available for storage after RAID, performance buffers, and overhead are applied.

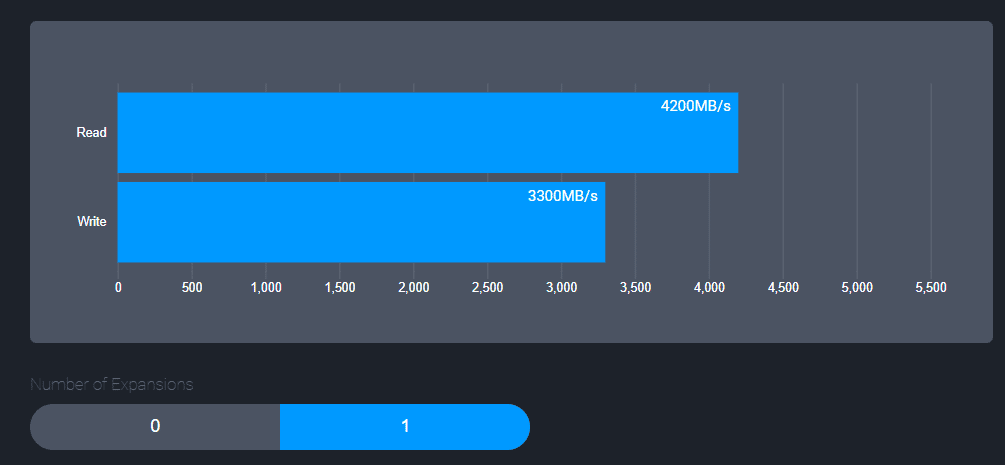

PERFORMANCE

Punches way above its weight class

The OWC Jellyfish Mobile video editing server puts enterprise-level performance into the hands of growing video teams. Crank through HD and 4K projects without being held back by your storage and finish more jobs in less time.

SETUP & SOFTWARE

SETUP IS SIMPLE

The OWC Jellyfish Mobile server was designed to be unboxed and up and running in under 30 minutes with no prior networking experience required. You will be guided through each step of the setup online, and if you need additional help our support team is only a phone call away.

KYNO FOR OWC JELLYFISH

Your OWC Jellyfish comes with free unlimited licenses for Kyno for OWC Jellyfish which allows you to organize and filter through your entire media library using rich metadata, custom tags, and ratings. Kyno for OWC Jellyfish integrates with your editing software so the clips you already tagged arrive in your project organized and ready to be found.

OWC JELLYFISH MEDIA ENGINE

Leverage the processing power of your OWC Jellyfish to generate proxies for your offline or remote workflows. Access those proxies locally or remotely and link them to your project. Switch to proxy mode in your editing software and enjoy smooth playback no matter your connection speed. OWC Jellyfish Media Engine comes free with your OWC Jellyfish purchase to provide your team with an extra level of flexibility.

OWC JELLYFISH MANAGER

If you’ve never had to manage a server before, OWC designed the Jellyfish Manager for you. If you have managed a server before, you’ll wonder why they weren’t all this intuitive or easy to use.

OWC JELLYFISH CONNECT

OWC have made connecting your Mac to the OWC Jellyfish R24 easier than ever with their patented OWC Jellyfish Connect app for macOS. Just open the app on your computer, let it work its magic, and get right to work.

OS COMPATIBILITY

The OWC Jellyfish Mobile server is compatible with Mac, Windows, and Linux operating systems and supports a mixed hardware / software environment.

NLE COMPATIBILITY

Work in the NLE, DAW, or VFX software of your choosing, or use them all. OWC’s engineers work closely with Apple, Adobe, and Blackmagic to ensure seamless workflows between your favorite apps.

DEEP SPECS

USERS & CONNECTIVITY

MAXIMUM DIRECT CONNECTIONS

10

SWITCH REQUIRED

NO

THUNDERBOLT CONNECTIVITY

With third party Ethernet to Thunderbolt adapter

STANDARD CONNECTIVITY

10 Gigabit Ethernet

1 Gigabit Ethernet

via RJ45 [CAT5/6/6a/7 Cables]

BASE CONFIG.

128GB DDR4 RAM

2TB Read Cache SSD

2TB Dedicated Project/Cache NVMe Pool

2 x 10GbE RJ45 Ports

CONNECTION UPGRADES

ADD 10GbE [RJ45]

STORAGE

AVAILABLE CAPACITY

32TB, 48TB, 64TB, 80TB, 96TB

USABLE STORAGE SIZE

23TB, 35TB, 46TB, 58TB, 70TB

EXPANDABILITY

Add an additional OWC Jellyfish Mobile expansion unit anytime over 12G HD Mini-SAS.

PERFORMANCE

AGGREGATE BANDWIDTH

2400MB/s Read

1000MB/s Write

PER USER SPEEDS

10GbE User – 650-1000MB/s

1GbE User – 100MB/s

With Boost

Increase RAM to 256GB

Increase NVMe Cache Pool to 4TB

DATA SECURITY

RAID PROTECTION

All OWC Jellyfish video editing servers utilize RAID ZFS which adds an extra layer of protection to your data since all data and metadata are stored on your volume.

RAID Z1 (STANDARD)
By default, a OWC Jellyfish Mobile in a RAID Z1 configuration can sustain a single disk failure (out of 8) without data loss.
RAID Z2 (OPTIONAL)

A OWC Jellyfish Mobile in a RAID Z2 configuration will have a reduced overall capacity but can sustain a failure of up to 2 disks (out of 8) without data loss. Recommended for teams that often travel with their OWC Jellyfish Mobile.

BACKUP & ARCHIVE

Rsync
Snapshots

PHYSICAL SPECS

DIMENSIONS

Height 12.5 inches

Depth 17 inches

Width 7.75 inches

Weight ~35 lbs.

FORM FACTOR

Desktop

NOISE LEVEL

54 Decibels Under Heavy I/O

POWER SUPPLY

100-240V~12-6A 50-60Hz

750 Watt

Average Power Draw: ~400W

ADDITIONAL SERVER ACCESS

IPMI

USB 3 [x4]

VGA PORT

PROTOCOL SUPPORT

SMB
NFS
sFTP
SSH

Contact Us For More Information
